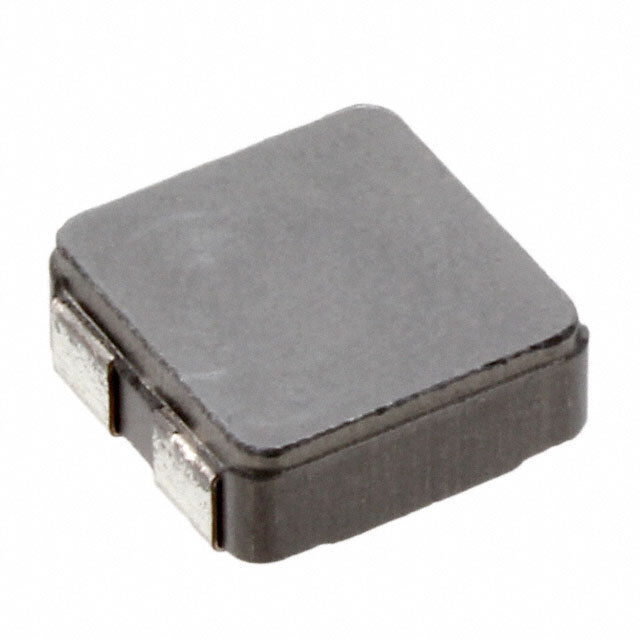

Same model may have multiple batches, images only for reference.
SRF1260-820M Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SRF1260-820M

Part No SRF1260-820M
Manufacturer Bourns Inc.
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 82UH SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Number of Coils 2
Inductance - Connected In Parallel 82 µH
Inductance - Connected In Series 328 µH
Tolerance ±20%
Current Rating - Parallel 2.05 A
Current Rating - Series 1.03 A
Current Saturation - Parallel 2.39 A
Current Saturation - Series 1.2 A
DC Resistance (DCR) - Parallel 150mOhm Max
DC Resistance (DCR) - Series 568mOhm Max
Shielding Shielded
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Case / Package Nonstandard
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height 0.244\
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1530736-SRF1260-820M
Ultra Librarian 3D Model Ultra Librarian SRF1260-820M CAD Model

Description

N
