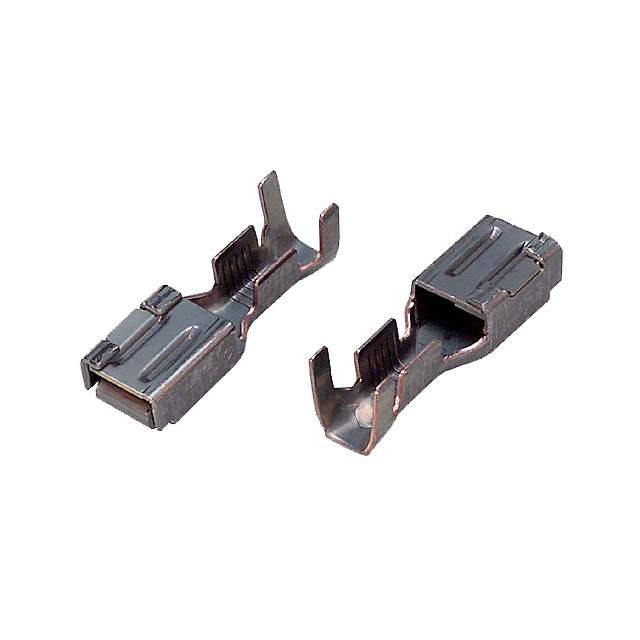

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Contacts
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 10-12 AWG
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Base Product Number 316041
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -316041-2-CSI,A29272,3160412,-316041-2-SI
Standard Package 500
Win Source Part Number 1332676-316041-2
Ultra Librarian 3D Model Ultra Librarian 316041-2 CAD Model

Description

The TE Connectivity AMP Connectors 316041-2 is a rectangular connector contact that is designed to offer high performance and reliability.

  • Contact Type: socket
  • Contact Finish: gold
  • Wire Gauge: 10-12 AWG
  • Packaging: bulk
  • Termination: crimp technology
  • RoHS Compliant: Yes
  • REACH: unaffected
  • Win Source Part Number: 1332676-316041-2
