The PE43713A-Z is a high-linearity, 50-ohm RF Digital Step Attenuator (DSA) designed by pSemi (Peregrine Semiconductor). This DSA covers a broad frequency range, making it suitable for various wireless communication and test equipment applications. It offers precise attenuation control and excellent RF performance.

Applications

• Base stations: Used for signal conditioning and level control in cellular base stations.
• Test and measurement equipment: Employed in signal generators, spectrum analyzers, and network analyzers for accurate attenuation.
• Broadband communication systems: Integrated into cable modems and satellite communication systems for gain adjustment.
• Wireless infrastructure: Utilized in repeaters and distributed antenna systems (DAS) for signal optimization.
• Phased array antennas: Provides precise attenuation control for beamforming.

Features

• Frequency Range: Operates from 9 kHz to 6 GHz.
• Attenuation Range: Offers a wide attenuation range, typically 31.5 dB with 0.5 dB steps.
• High Linearity: Exhibits excellent linearity performance, minimizing distortion.
• Low Insertion Loss: Features low insertion loss to maintain signal integrity.
• Fast Switching Speed: Provides fast switching speeds for rapid attenuation changes.
• Serial Interface: Controlled via a serial interface (SPI or similar) for easy integration.
• Single Supply Voltage: Operates from a single positive supply voltage.
• CMOS Compatible Control: Enables direct interface with CMOS control logic.
• ESD Protection: Integrated ESD protection for robust performance.

Benefits

• Precise Attenuation Control: Enables accurate signal level adjustment for optimal performance.
• Improved System Performance: High linearity minimizes signal distortion, enhancing overall system performance.
• Flexible Integration: Serial interface simplifies integration into various systems.
• Reduced Board Space: Compact size allows for efficient use of board space.
• Cost-Effective Solution: Provides a high-performance attenuation solution at a competitive price.

Additional Details

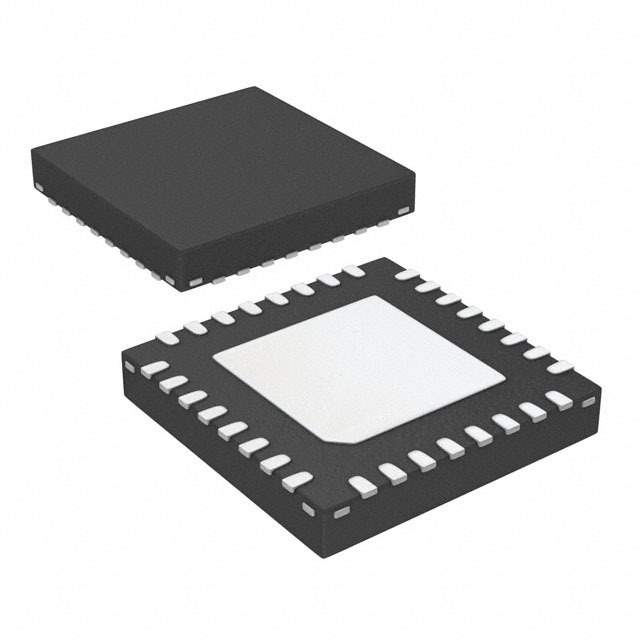

The PE43713A-Z is typically available in a small QFN package. It requires minimal external components, further simplifying the design process. The device's high linearity and low insertion loss contribute to improved signal quality and overall system performance. Detailed specifications, including supply voltage range, control voltage levels, and temperature operating range, are available in the product datasheet from pSemi.
