3-520133-2

Part No 3-520133-2
Manufacturer TE Connectivity
Catalog Terminals

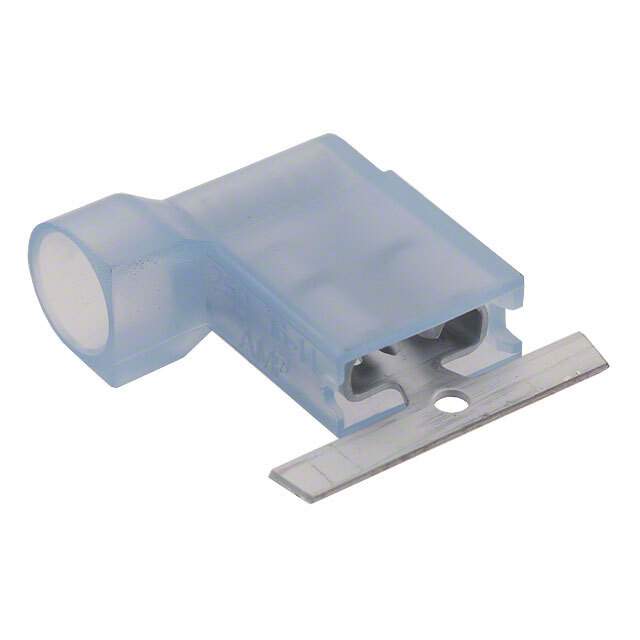

Description CONN QC RCPT 14-16AWG 0.250 / 0.250" (6.35mm) Quick Connect Female 14-16 AWG Crimp Connector Fully Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Fully Insulated
Mounting Free Hanging (In-Line), Right Angle
Color Blue
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.185" (4.70mm)
Base Product Number 520133
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 35201332,A27843,-3-520133-2-CSI,3-520133-2-ND,-3-520133-2-LSI,-3-520133-2-SI
Standard Package 1,000
Win Source Part Number 1333441-3-520133-2
Ultra Librarian 3D Model Ultra Librarian 3-520133-2 CAD Model

Description

TE Connectivity 3-520133-2 is a terminal component used in electrical interconnect systems where secure wire termination and reliable signal or power continuity are important. Parts in this category are commonly selected for harness assemblies, control equipment, industrial electronics, appliances, and other designs that depend on consistent mechanical and electrical connection performance. Engineers often choose TE Connectivity terminals for broad ecosystem compatibility, established brand support, and suitability for production as well as maintenance sourcing. For design teams evaluating this part, the current lifecycle status is listed as unknown, so supply planning should include direct verification with TE Connectivity or authorized channel partners before locking it into new designs. RoHS compliance information is also not available from the provided data, so environmental compliance should be confirmed through the latest manufacturer documentation, product datasheet, or compliance certificate. This makes 3-520133-2 most appropriate for teams that can perform documentation-based qualification during procurement.
