Same model may have multiple batches, images only for reference.

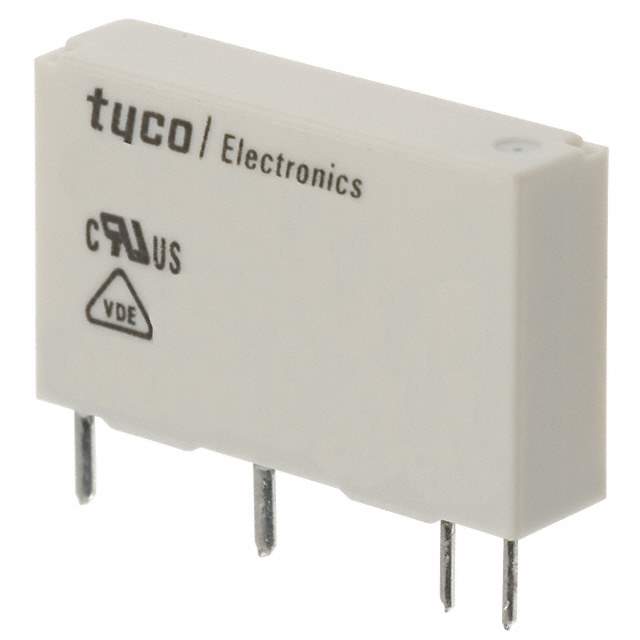

3-1461491-1 Real Image
Same model may have multiple batches, images only for reference.

3-1461491-1

Part No 3-1461491-1
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description Electromechanical Relay 6VDC 300Ohm 3A SPST-NO (20x5x12.5)mm THT Slim PCB Relay
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Ambient Temperature Range High 85 °C
Mounting SMD (SMT)
Case / Package SIP
Coil Current 20 mA
Coil Power 120 mW
Coil Resistance 300 Ω
Coil Type Non-Latching
Coil Voltage (DC) 6 V
Contact Current Rating 3 A
Contact Material Silver
Contact Plating Gold
Current Rating 3 A
Depth 5 mm
ELV Compliant
Height 12.8 mm
Lead Free Yes
Length 20 mm
Max Current Rating 3 A
Maximum Operating Temperature 70 °C
Max Voltage Rating (AC) 277 V
Min Operating Temperature -40 °C
Mount Through Hole
Number of Contacts 1
Number of Pins 4
Operate Time 8 ms
Radiation Hardening No
REACH SVHC No SVHC
Relay Type General Purpose
Release Time 3 ms
RoHS Compliant
Switching Current 3 A
Termination PC Pin
Throw Configuration SPST
Voltage Rating (AC) 277 V
Width 5 mm
Win Source Part Number 1084391-3-1461491-1
Categories Signal Relays,Up to 2 Amps
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 3-1461491-1 CAD Model

Description

The TE Connectivity 1084391-3-1461491-1 is a low popularity electronic component that is designed for use as a signal relay.

  • Current Rating: 3A
  • Contact Material: Silver
  • Coil Resistance: 300Ω
  • Coil Current: 20mA
  • Contact Current Rating: 3A
  • Operate Time: 8ms
  • Poles: SPST
  • Coil Voltage: 6VDC
  • Mounting: Through-Hole
  • Height: 12.8mm
  • Width: 5mm
