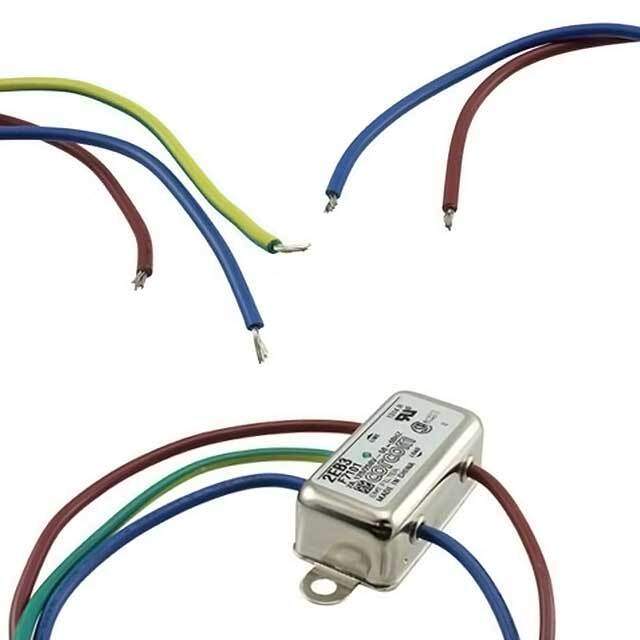

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters>Power Line Filter Modules
Mfr TE Connectivity Corcom Filters
Series B
Package Bulk
Filter Type Single Phase
Configuration Single Stage
Voltage - Rated AC 250V
Current 2 A
Frequency - Operating 50/60Hz
Applications General Purpose
Approval Agency CSA, UR, VDE
Temperature Range - Operating -10°C ~ 40°C
Mounting Type Chassis Mount
Termination Style Wire Leads
Inductance 539µH
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8548.00.0000
Other Names 1609020-4,6609020-4,-2EB3-SI,2EB3-NDR
Standard Package 56
Win Source Part Number 989726-2EB3
Ultra Librarian 3D Model Ultra Librarian 2EB3 CAD Model

Description

The B series single phase single stage power line filter module from TE Connectivity Corcom Filters has a configuration of wire leads and is designed for general purpose applications.

  • Configuration: Wire leads
  • Application: General purpose
  • Inductance: 539µH
  • Current: 2A
  • Voltage: 250V AC
  • Frequency: 50/60Hz
  • Mounting: Chassis
  • Temperature Range: -10°C ~ 40°C
  • MSL Level: 1 (unlimited)
  • REACH: Vendor undefined
  • HTSUS: 8548.00.0000
  • Approvals: CSA, UR, VDE
