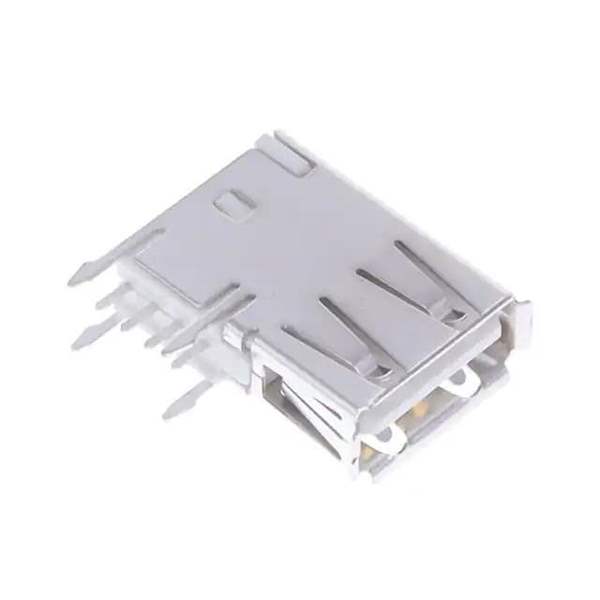

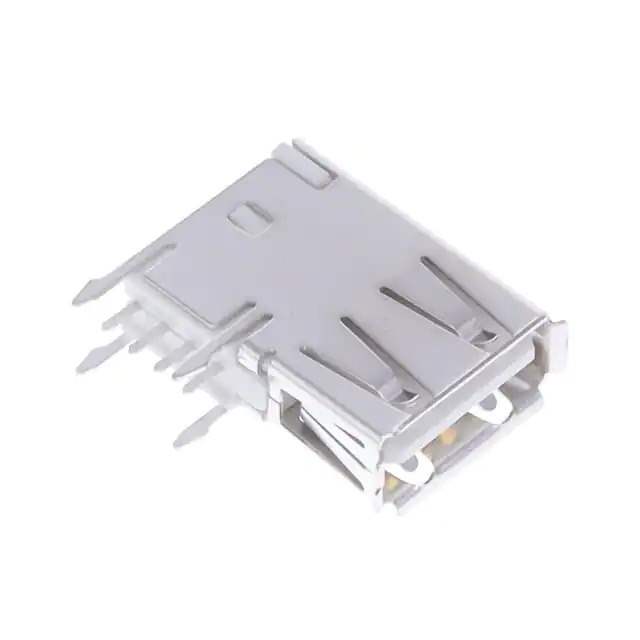

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr TE Connectivity
Package Box
Product Status Active
Connector Type USB-A (USB TYPE-A)
Number of Contacts 4
Gender Receptacle
Specifications USB 2.0
Mounting Type Through Hole, Right Angle
Mounting Feature Vertical, Flag
Termination Solder
Temperature Range - Operating -55°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 1A per Contact
Voltage - Rated 30VAC
Mating Cycles 1500
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Copper Alloy
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number 292336
Standard Package 22 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 854896-292336-2
Ultra Librarian 3D Model Ultra Librarian 292336-2 CAD Model

Description

The 854896-292336-2 is a USB-A connector assembly from TE Connectivity.

  • Application: USB 2.0
  • Design: Shielded
  • Contacts: 4
  • Gender: Receptacle
  • Contact Finish: Gold
  • Mounting: Through Hole
  • Mounting Feature: Right-Angle
  • Voltage Rating: 30VAC
  • Temperature Range: -55°C to 85°C
  • Shell/Shielding Material: Copper Alloy
  • Mating Cycle: 1500
