CX80B1-24P Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

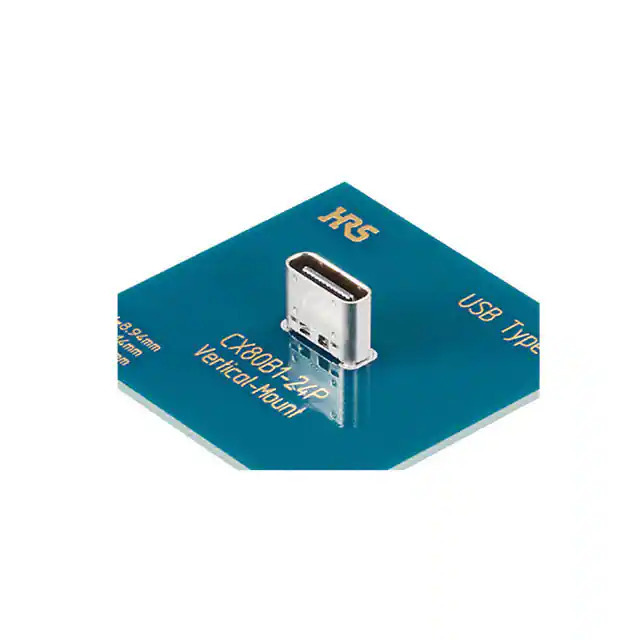

CX80B1-24P

Part No CX80B1-24P
Manufacturer Hirose Electric Co Ltd
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB3.1 TYPE C SMT VERT / USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Through Hole
Datasheet
CX80B1-24P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr Hirose Electric Co Ltd
Series CX
Package Tape & Reel
Product Status Active
Connector Type USB-C (USB TYPE-C)
Number of Contacts 24
Gender Receptacle
Specifications USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mounting Type Surface Mount, Through Hole
Mounting Feature Reversible, Vertical
Termination Solder
Features -
Ingress Protection -
Temperature Range - Operating -40°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 0.25A, 1.25A
Voltage - Rated 20VAC
Mating Cycles 10000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number CX80B1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364364-CX80B1-24P
Ultra Librarian 3D Model Ultra Librarian CX80B1-24P CAD Model

Description

The CX80B1-24P is a USB-C (USB TYPE-C) connector assembly. It is a tape & reel packaged connector designed for USB, DVI, HDMI connections. Hirose Electric Co Ltd manufactures this product.

  • Series: CX
  • Connector Type: USB-C (USB TYPE-C)
  • Application: USB, DVI, HDMI
  • Voltage Rating: 20VAC
  • Current Rating: 0.25A and 1.25A
  • Shielding: Shielded
  • Contact Finish: Gold
  • Reversible: Yes
  • Mounting Type: Vertical
  • Gender: Receptacle
  • Mating Cycles: 10000
  • Packaging: Tape & Reel
