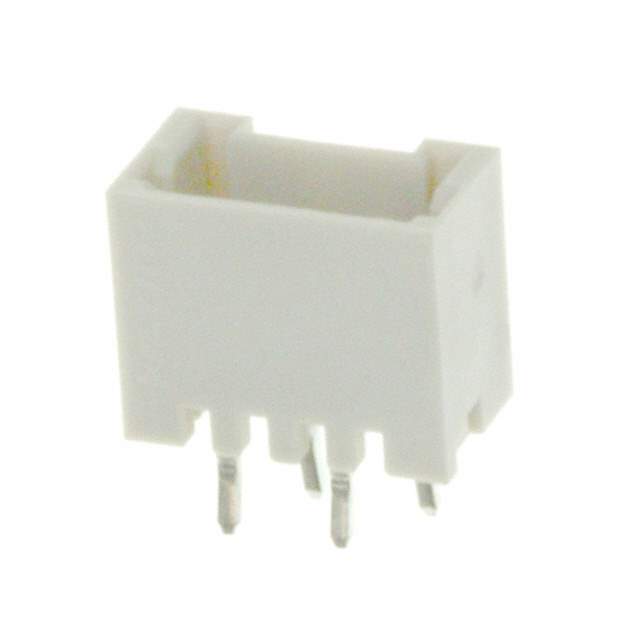

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 24 Weeks
Features Connector Header Through Hole 4 position 0.059" (1.50mm)
Manufacturer TE Connectivity
Series Mini CT
Package Bulk
Operating Temperature Range -30°C ~ 105°C
Mounting Through Hole
Family Name 292207
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2922074, A98683, -292207-4-CSI, -292207-4-SI
Quantity per package 1750
Popularity High
Supply and Demand Status Balance
Win Source Part Number 906162-292207-4
Ultra Librarian 3D Model Ultra Librarian 292207-4 CAD Model

Description

The TE Connectivity Mini CT connector header is an ideal solution for your electronic projects from TE Connectivity.

  • Mounting: Through-Hole
  • Positions: 4
  • Temperature Range: -30°C to 105°C
  • Pitch: 1.50mm
  • Packaging: Bulk
  • Quantity per Package: 1750
  • Series: Mini CT
