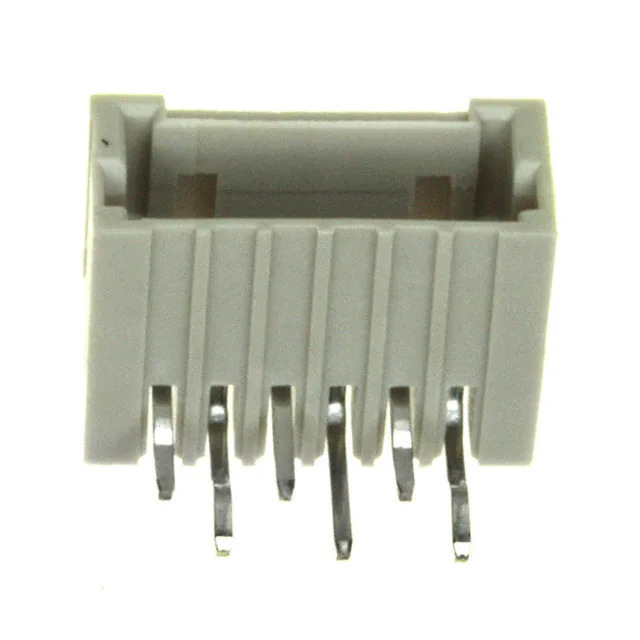

292206-6 TE Connectivity
Same model may have multiple batches, images only for reference.

292206-6

Part No 292206-6
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 6POS 1.5MM / Connector Header Through Hole, Right Angle 6 position 0.059" (1.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Mini CT
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Number of Positions 6
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Kinked Pin, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length -
Insulation Height 0.193" (4.90mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features -
Temperature Range - Operating -30°C ~ 105°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Gray
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 50VAC
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications General Purpose
Base Product Number 292206
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362634-292206-6
Ultra Librarian 3D Model Ultra Librarian 292206-6 CAD Model

Description

The TE Connectivity AMP Connectors 292206 is a male pin header connector with 6 positions and a 1.50mm pitch from TE Connectivity AMP Connectors.

  • Series: Mini CT
  • Application: Board-to-Cable/Wire
  • Number of Positions: 6
  • Pitch: 1.50mm
  • Contact Material: Brass
  • Contact Finish: Tin
  • Design: Shrouded, 4 Walls
  • Application: General Purpose
  • Temperature Range: -30°C to 105°C
  • Termination Style: Kinked Pin, Solder
  • Mounting Type: Through-Hole, Right-Angle
