Same model may have multiple batches, images only for reference.

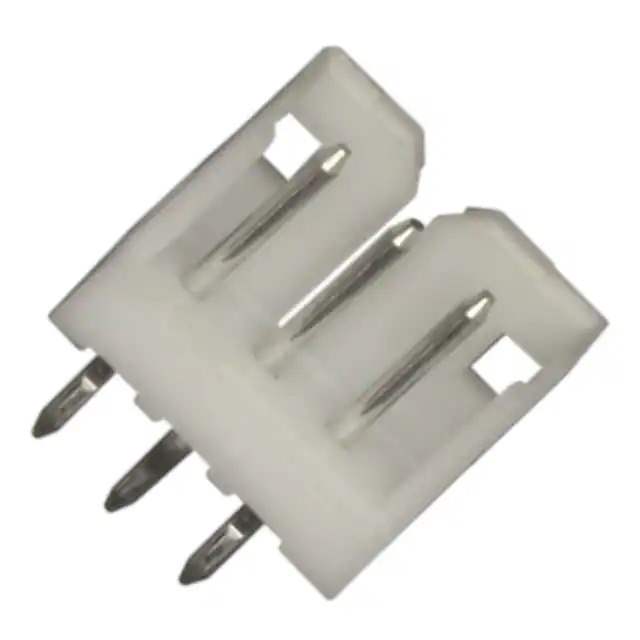

292161-3 Real Image
Same model may have multiple batches, images only for reference.

292161-3

Part No 292161-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 3POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series CT
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.177" (4.50mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length 0.370" (9.40mm)
Insulation Height 0.268" (6.80mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 125VAC
Applications General Purpose
Base Product Number 292161
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 854888-292161-3
Ultra Librarian 3D Model Ultra Librarian 292161-3 CAD Model

Description

The 854888-292161-3 is a header connector from TE Connectivity's CT series.

  • Series: CT
  • Connector Type: Header, Male Pin
  • Positions: 3
  • Contact Material: Brass
  • Voltage Rating: 125VAC
  • Mounting: Through-Hole
  • Pitch: 0.079" (2.00mm)
  • Fastening Type: Detent Lock
  • Loaded Positions: All 3
  • Contact Finish (Mating/Post): Tin
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Flammability Rating: UL94 V-0
  • Application: Board to Cable/Wire
  • Design: Shrouded with 3 Walls
  • Package: 1,000 pieces
  • Overall Contact Length: 0.370" (9.40mm)
  • REACH: Unaffected
  • HTSUS Code: 8536.69.4040
