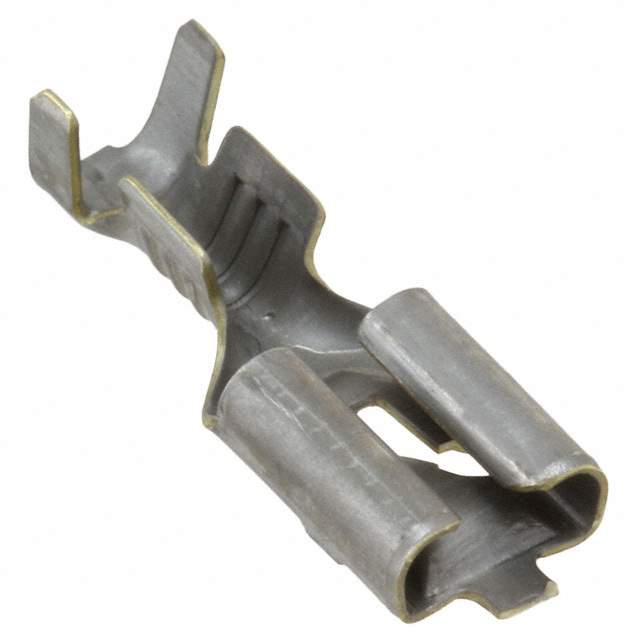

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.252" (6.40mm)
Length - Overall 0.630" (16.00mm)
Termination Crimp
Wire Gauge 15-20 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line)
Contact Material Phosphor Bronze
Contact Finish Tin
Insulation Diameter 0.091" ~ 0.130" (2.31mm ~ 3.30mm)
Base Product Number 280919
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A123013CT,A123013TR,280919-4-ND
Standard Package 8,000
Win Source Part Number 1333750-280919-4
Ultra Librarian 3D Model Ultra Librarian 280919-4 CAD Model

Description

TE Connectivity AMP Connectors' quick connect/disconnect female terminal is a crimp type contact finish with tin plating.

  • Wire Gauge: 15-20 AWG
  • Contact Material: Phosphor Bronze
  • Terminal Type: Standard
  • Length Overall: 0.630 inches
  • Insulation: Non-Insulated
  • Tab Width: 0.187 inches
  • Tab Thickness: 0.032 inches
  • Tab Length: 0.252 inches
  • Insulation Diameter: 0.091 inches to 0.130 inches
  • ECCN: EAR99
  • RoHS3 Compliant: Yes
  • MSL Level: 1 (unlimited)
  • Standard Package: 8,000
