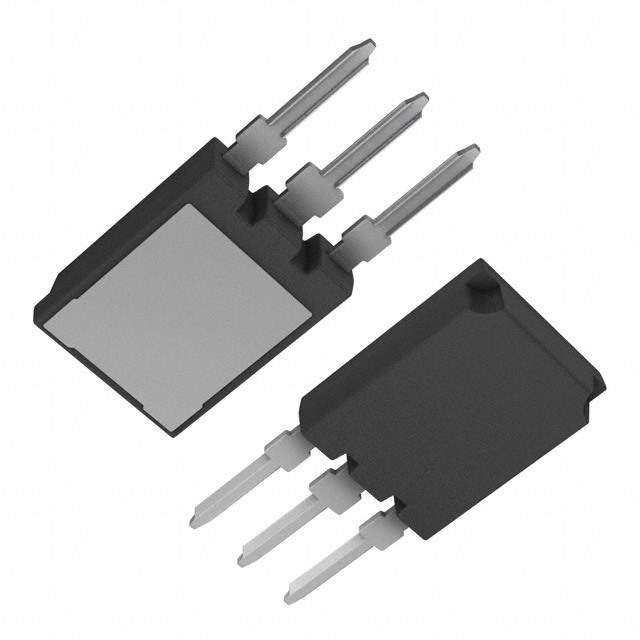

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Part Status Obsolete (End Of Life)
Voltage - Off State 1.2kV
Voltage - Gate Trigger (Vgt) (Maximum) 1.5V
Current - Gate Trigger (Igt) (Maximum) 100mA
Voltage - On State (Vtm) (Maximum) 1.4V
Current - On State (It (AV)) (Maximum) 70A
Current - On State (It (RMS)) (Maximum) 75A
Current - Hold (Ih) (Maximum) 200mA
Current - Off State (Maximum) 1mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 1400A at 50Hz
SCR Type Standard Recovery
Temperature Range - Operating -40°C ~ 125°C
Mounting Style Through Hole
Manufacturer Package TO-274AA
Supplier Device Package SUPER-247 (TO-274AA)
Part Number Series 70TPS*
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 808941-70TPS12
Ultra Librarian 3D Model Ultra Librarian 70TPS12 CAD Model

Description

The Vishay Semiconductor Diodes Division 70TPS12 is a standard recovery SCR type electronic component that is now obsolete.

  • Voltage Off State: 1.2kV
  • Maximum Gate Trigger Voltage: 1.5V
  • Maximum On State Current: 75A
  • Maximum Non-Repetitive Surge Current: 1400A @ 50Hz
  • Supplier Device Package: SUPER-247 (TO-274AA)
  • Temperature Range: -40°C to 125°C

This component is suitable for use in various electronic applications such as motor control, power supplies, and welding equipment.
