Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Rectangular Connectors Rectangular Connector Accessories
Series Grace Inertia 2.0
Package Bag
Product Status Active

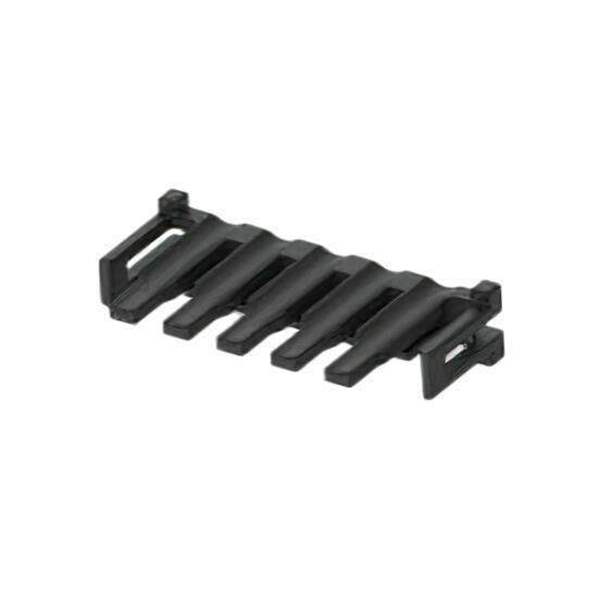

Accessory Type Terminal Position Assurance (TPA)
For Use With/Related Products SGI Series
Win Source Part Number WS1207162-2357686-5
Ultra Librarian 3D Model Ultra Librarian 2357686-5 CAD Model

Description

This specification covers the requirements for application of the Signal Grace Inertia (SGI) 2.0 crimp version connector system used in wire to board applications. The crimp version Signal Grace Inertia (SGI) 2.0 connector system is available in a 2 to 10 position configuration for a 22 AWG to 28 AWG wire range. Optional terminal position assurance (TPA) accessories are available for all wire sizes. Cap and plug housings are available in multiple keying and color configurations.
