Part No 2336682-1
Manufacturer TE Connectivity
Catalog Backplane Connectors

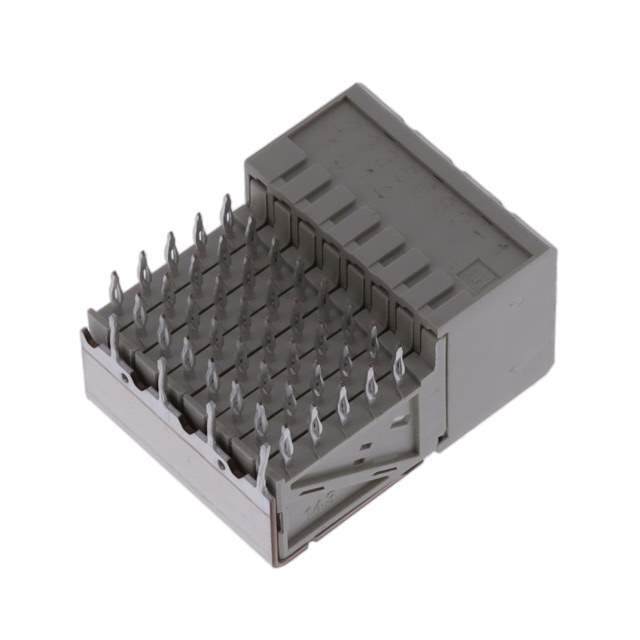

Description 2MM HM FEMALE ASSY, COL8 / 40 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Gray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - Specialized
Mfr TE Connectivity AMP Connectors
Series Z-PACK
Package Tube
Connector Usage Backplane
Connector Type Receptacle, Female Sockets
Number of Positions 40
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5
Number of Columns 8
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Features Mating Guide, Upper Shield
Contact Finish Gold
Color Gray
Current Rating (Amps) 1.5A
Material Flammability Rating UL91 V-0
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 2336682
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names -2336682-1-SI,A144745
Standard Package 32
Win Source Part Number 1001407-2336682-1
Ultra Librarian 3D Model Ultra Librarian 2336682-1 CAD Model

Description

The 2336682-1-SI is a Z-PACK backplane connector manufactured by TE Connectivity AMP Connectors.

  • Positions: 40
  • Columns: 8
  • Rows: 5
  • Connector Type: Receptacle with female sockets
  • Pitch: 0.079" (2.00mm)
  • Loaded: All positions
  • Termination: Press-fit
  • Contact Finish: Gold
  • Contact Finish Thickness: Not specified
  • Color: Gray
  • Material Flammability Rating: UL91 V-0
  • Mating Guide: Yes
  • Upper Shield: Yes
  • Temperature Range: -55°C to 125°C
