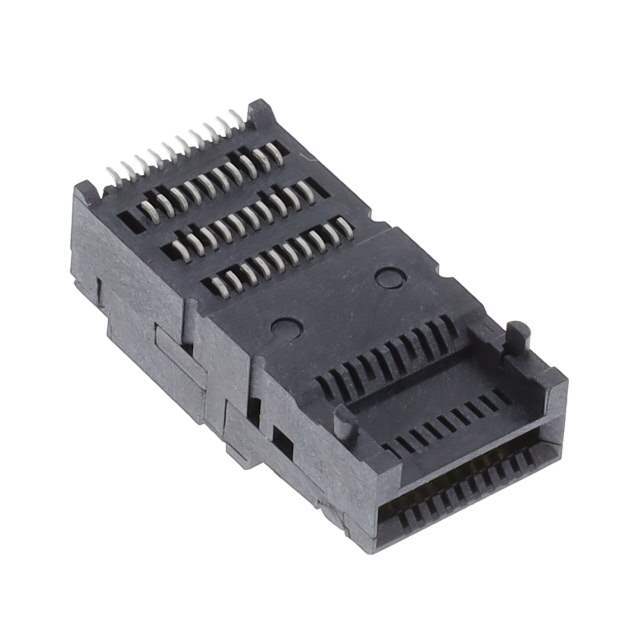

2325864-1 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1206447-2325864-1
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects -Pluggable Connectors -Pluggable Connector Assemblies
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Connector Style Receptacle
Connector Type SFP-DD (Double Density)
Number of Positions 40
Mounting Type Surface Mount, Right Angle
Termination Solder
Features Board Guide
Ultra Librarian 3D Model Ultra Librarian 2325864-1 CAD Model

Description

The product should remain in the shipping containers until ready for use to prevent deformation to components. The product should be used on a first in, first out basis to avoid storage contamination that could adversely affect performance.
