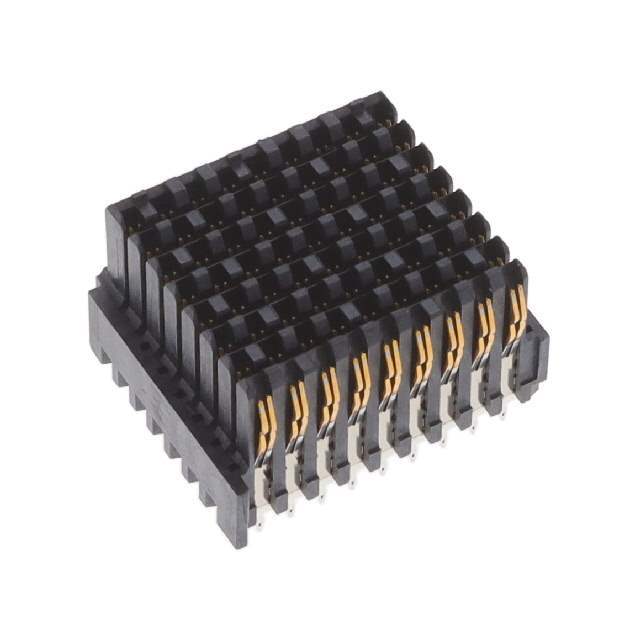

2302788-1 TE Connectivity Aerospace, Defense and Marine
Same model may have multiple batches, images only for reference.

2302788-1

Part No 2302788-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description VERTRECASSYLEFTEND HALF MGRT3
Datasheet
2302788-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308742-2302788-1
Manufacturer TE Connectivity Aerospace, Defense and Marine
Category Connectors, Interconnects>Backplane Connectors>Specialized
Packaging Tube
Part Status Active
Connector Usage Daughtercard
Connector Type Receptacle, Female Blade Sockets
Number of Positions 72
Number of Positions Loaded All
Pitch 0.071" (1.80mm)
Number of Rows 9
Number of Columns 8
Mounting Type Through Hole
Termination Press-Fit
Ultra Librarian 3D Model Ultra Librarian 2302788-1 CAD Model

Description

APPLICATIONS/MARKETS
• Military Electronics/C4ISR
• Avionics
• Ground Defense
• Missile Defense
• Space

STANDARDS AND SPECIFICATIONS
• Application Specification: 114-163004 (MULTIGIG RT 2, RT 2-R and MULtIGIG RT 3 Signal Connectors)
• Product Specification: 108-2072 (MULTIGIG RT 3)
• Qualification Test Report: 501-544 (MULTIGIG RT 2R) and 501-134091 (MULTIGIG RT 3)
• Electrical Performance Report: 505-2 (RT 3)
• Backplane Connector Removal: 408-10127 (RT 3)
• Daughtercard Connector Removal: 408-10454 (RT 3)
• Standards and Test Reports: #204690 (VITA 72 VPX Connector Report)
