Same model may have multiple batches, images only for reference.

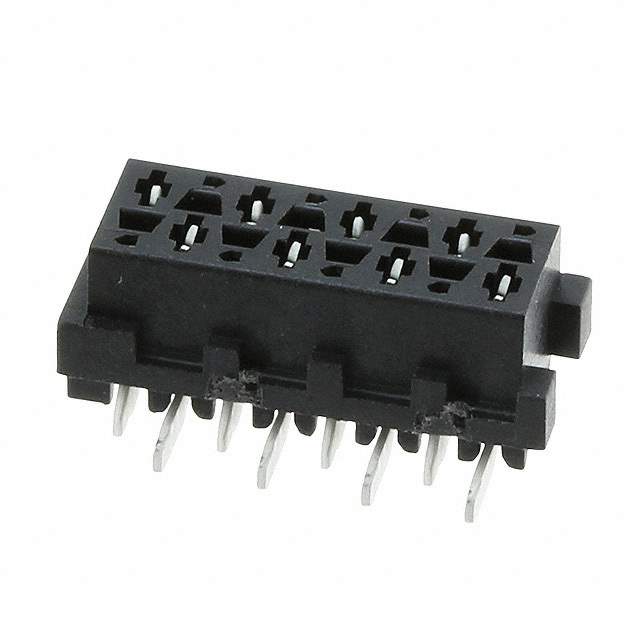

2178711-8 Real Image
Same model may have multiple batches, images only for reference.

2178711-8

Part No 2178711-8
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description THIS DRAWING IS A CONTROLLED DOCUMENT. | CONN RCPT 8POS 0.1 TIN SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Reel
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 8
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Style SMD
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 118.1μin (3.00μm)
Insulation Color Black
Insulation Height 0.209" (5.30mm)
Temperature Range - Operating -30°C ~ 85°C
Contact Finish - Post Tin
Voltage Rating 100VDC
Applications General Purpose, Telecommunications
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Contact Material Brass
Contact Finish Thickness - Post 118.1μin (3.00μm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1123012-2178711-8
Manufacturer Homepage www.te.com/usa-en/home.html
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2178711-8 CAD Model

Description

This electronic component is manufactured by TE Connectivity AMP Connectors and is a board-to-board or cable style connector. It has a pitch-mating of 0.100" (2.54mm) and a voltage rating of 100VDC.

  • Connector Style: Board-to-Board or Cable
  • Pitch-Mating: 0.100" (2.54mm)
  • Voltage Rating: 100VDC
  • Mounting Style: Receptacle
  • Termination: Soldered
  • Application: General Purpose and Telecommunications
  • Contact Material: Brass
  • Insulation Color: Black
