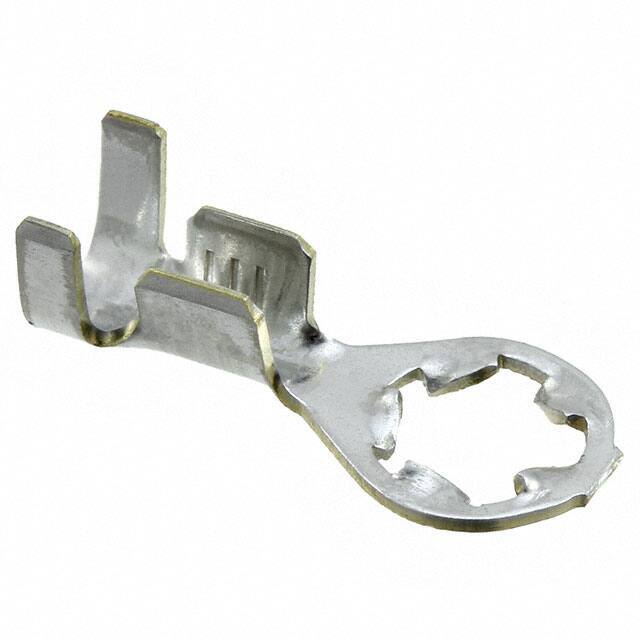

2178304-3 TE Connectivity
Same model may have multiple batches, images only for reference.

2178304-3

Part No 2178304-3
Manufacturer TE Connectivity
Catalog Terminals
Description CONN RING STUD RETAIN 14-18AWG 8
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series -
Package Strip
Product Status Obsolete
Terminal Type Stud Retaining
Stud/Tab Size 8 Stud
Thickness 0.020" (0.51mm)
Width - Outer Edges -
Length - Overall 0.659" (16.74mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Features Inner Teeth
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.105" ~ 0.170" (2.67mm ~ 4.32mm)
Material - Insulation -
Base Product Number 2178304
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1377400-2178304-3
Ultra Librarian 3D Model Ultra Librarian 2178304-3 CAD Model

Description

The Ring Connector is a versatile terminal from TE Connectivity AMP Connectors suitable for a range of applications.

  • Mounting Type: Free Hanging (In-Line)
  • Termination: Crimp
  • Wire Gauge: 14-18 AWG
  • Contact Finish: Tin
  • Overall Length: 0.659" (16.74mm)
  • Thickness: 0.020" (0.51mm)
