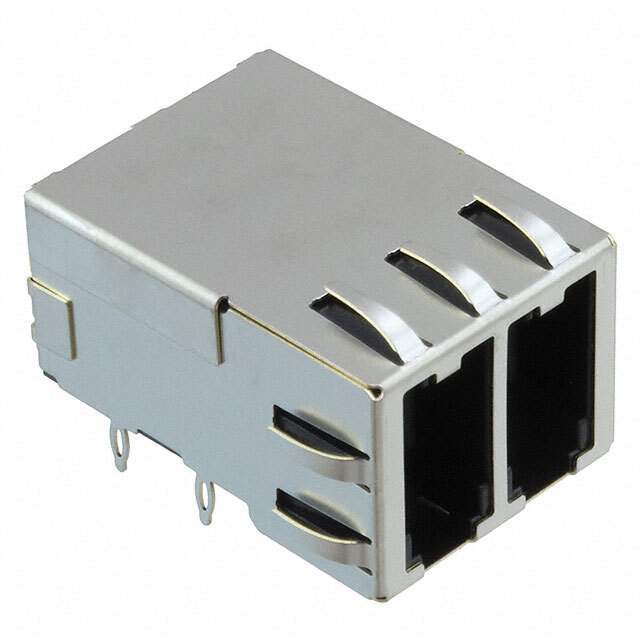

2170129-1 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1306769-2170129-1
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects- Modular Connectors- Modular Connector Jacks
Packaging  Tray
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ Point Five, Ethernet)
Mounting Type Board Edge; Panel Mount; Through Hole
Tab Direction Down
Contact Material Phosphor Bronze
Housing Material Thermoplastic
Ultra Librarian 3D Model Ultra Librarian 2170129-1 CAD Model

Description

Jack Modular Connector 8p8c (RJ Point Five, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat5e
