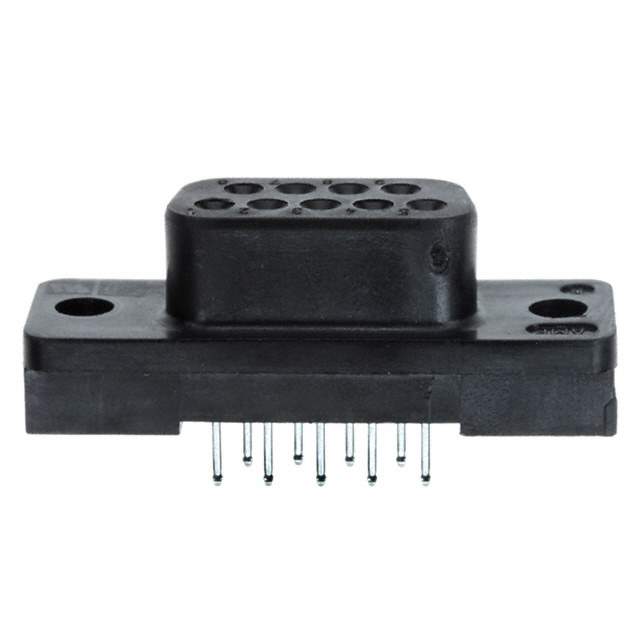

207826-4 Real Image
Same model may have multiple batches, images only for reference.

207826-4

Part No 207826-4
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN D-SUB RCPT 9POS VERT SLDR  /  9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tube
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Voltage Rating 125V
Color Black
Dielectric Material Polyester
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 207826
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2078264,A23238,2266-207826-4
Standard Package 17
Win Source Part Number 1205872-207826-4
Ultra Librarian 3D Model Ultra Librarian 207826-4 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE HD-20 series connector is a D-sub connector that has 9 positions and is designed for through-hole mounting.

  • Connector Type: receptacle
  • Contact Gender: female socket
  • Category: Connectors, Interconnects
  • Voltage Rating: 125V
  • Current Rating: 6A
  • Packaging: tube
  • Quantity per Tube: 17
  • RoHS Compliant: No
  • ECCN: EAR99.69.4040
  • Manufacturer: TE Connectivity AMP Connectors
