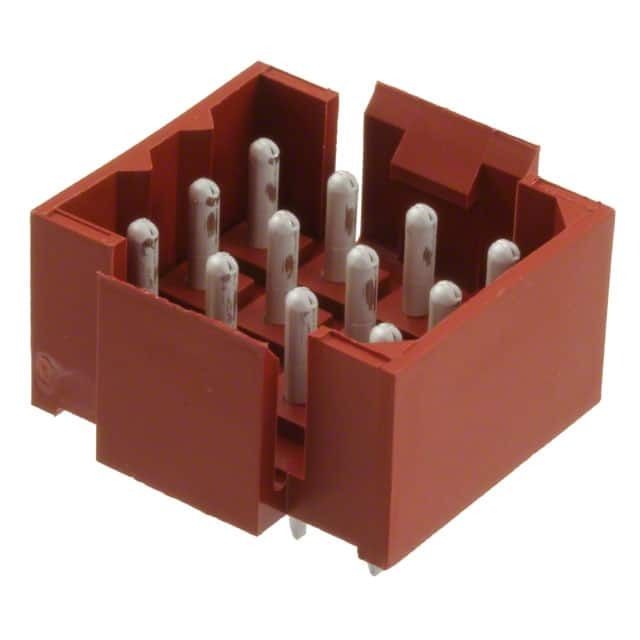

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series Metrimate
Package Tray
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.197" (5.00mm)
Number of Positions 12
Number of Rows 3
Row Spacing - Mating 0.197" (5.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock
Contact Length - Post 0.181" (4.60mm)
Insulation Height 0.464" (11.79mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 150.0µin (3.81µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Temperature Range - Operating -55°C ~ 130°C
Material Flammability Rating UL94 V-0
Insulation Color Black, Red
Current Rating (Amps) 7.5A
Voltage Rating 600V
Contact Finish Thickness - Post 150.0µin (3.81µm)
Applications Automotive, General Purpose, Industrial
Base Product Number 207120
Standard Package 70 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 854529-207120-2
Ultra Librarian 3D Model Ultra Librarian 207120-2 CAD Model

Description

The 793184 is a male pin header connector from TE Connectivity's Metrimate series.

  • Pitch: 0.197" (5.00mm)
  • Number of Positions: 12
  • Connection Type: Board-to-board or cable
  • Termination: Soldering
  • Fastening Type: Latch lock
  • Voltage Rating: 600V
  • Current Rating: 7.5A
  • Material: Brass
  • Contact Finish: Tin
  • Flammability Rating: UL94 V-0
  • Package: Tray
  • Standard Package: 70 pieces
  • Product Status: Obsolete
