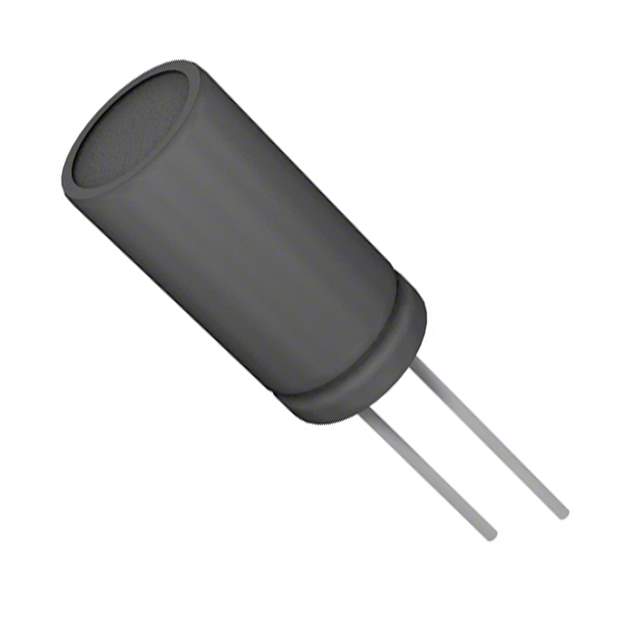

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXF
Package Cut Tape (CT) Tape & Box (TB)
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 787.5 mA @ 120 Hz
Ripple Current @ High Frequency 1.05 A @ 100 kHz
Impedance 78 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1339467-16YXF1000MEFCT810X20
Ultra Librarian 3D Model Ultra Librarian 16YXF1000MEFCT810X20 CAD Model

Description

The Rubycon YXF series aluminum electrolytic capacitor is a general-purpose capacitor with a capacitance of 1000 µF and a voltage rating of 16 V.

  • Package: Radial, Can
  • Size: 0.394" Dia (10.00mm)
  • Tolerance: ±20%
  • Lifetime: 7000 Hrs @ 105°C
  • Polarization: Polarized
  • Lead Spacing: 0.197" (5.00mm)
  • Impedance: 78 mOhms
  • ESR (Equivalent Series Resistance): Not Specified
  • Ripple Current (Low Frequency): 787.5 mA @ 120 Hz
  • Ripple Current (High Frequency): 1.05 A @ 100 kHz
  • Application: General Purpose
  • Temperature Range: -40°C to 105°C
