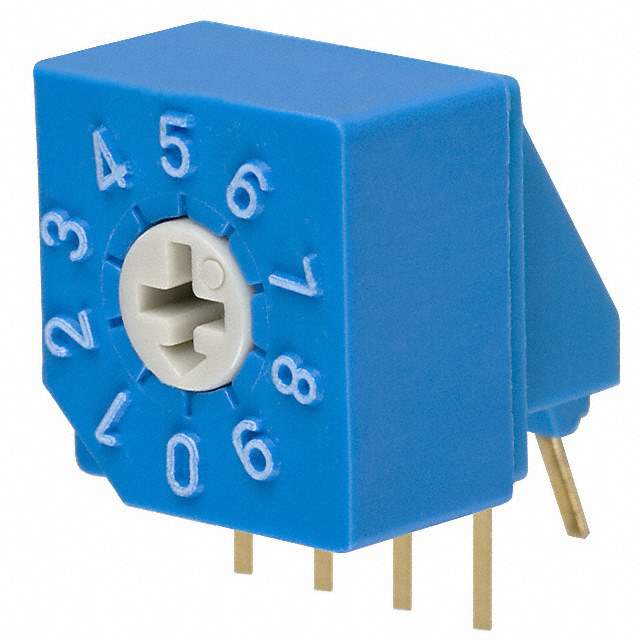

S-2011A Real Image
Same model may have multiple batches, images only for reference.

S-2011A

Part No S-2011A
Manufacturer Copal Electronics Inc.
Catalog DIP Switches
Description SWITCH ROTARY DIP 10-POS SIDE 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Copal Electronics Inc.
Standard Package 100
Category Switches
Family DIP Switches
Series S-2000A
Packaging Bulk
Circuit BCD
Number of Positions 10
Current Rating 100mA
Voltage Rating 5VDC
Actuator Type Rotary for Tool
Actuator Level Flush Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.394" (10.00mm)
Mounting Style Through Hole Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm) Full
Washable Yes
Body Material Polybutylene Terephthalate (PBT)
Length 0.393" (10.00mm)
Operating Temperature Range -40°C ~ 85°C
Electrical Life 10000 Steps
Catalog S-2000A Series
Win Source Part Number 046549-S-2011A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian S-2011A CAD Model

Description

The S-2000A Series DIP Switch from Copal Electronics Inc. is a high-quality switch that features a BCD circuit and a rotary actuator type.

  • Circuit: BCD
  • Actuator Type: Rotary
  • Positions: 10
  • Pitch: 0.100" (2.54mm) Full
  • Termination: PC Pin
  • Mounting: Through hole right angle
  • Voltage Rating: 5VDC
  • Current Rating: 100mA
  • Height Above Board: 0.394" (10.00mm)
  • Length: 0.393" (10.00mm)
  • Material: Polybutylene terephthalate (PBT)
  • Contact Finish: Gold
  • Category: DIP Switches
  • Status: Active
