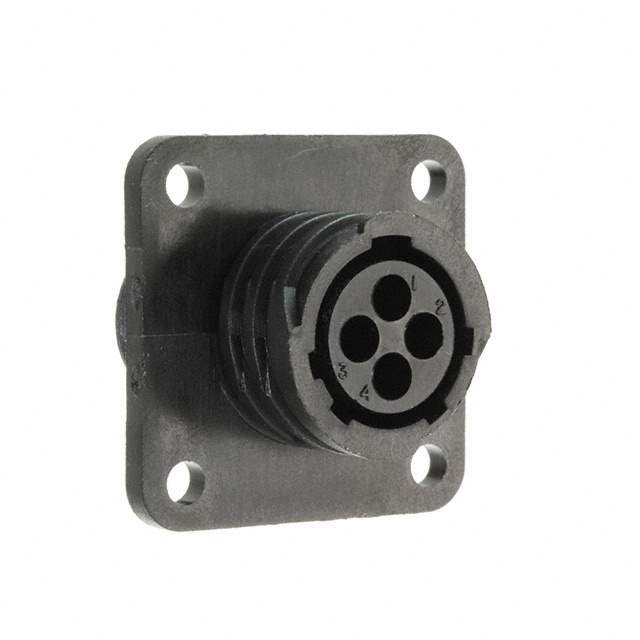

206430-1 Real Image
Same model may have multiple batches, images only for reference.

206430-1

Part No 206430-1
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Description CONN RCPT HSNG FMALE 4POS PNL MT / 4 Position Circular Connector Receptacle Housing Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Housings
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Receptacle Housing
Type For Female Sockets
Number of Positions 4
Shell Size - Insert 11-4
Contact Type Crimp
Contact Size 16
Mounting Panel Mount
Mounting Feature Flange
Fastening Type Threaded
Orientation A
Shell Material Polyamide (PA), Nylon
Housing Color Black
Material Flammability Rating UL94 V-0
Shielding Unshielded
Note Contacts Not Included
Insert Material Thermoplastic
Contact Shape Circular
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 206430
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Other Part Number -1167-206430-1,A1360,2266-206430-1,-206430-1-SI,2064301,-206430-1-CSI
Standard Package 1
Win Source Part Number 1334499-206430-1
Ultra Librarian 3D Model Ultra Librarian 206430-1 CAD Model

Description

The 206430-1 is a circular connector housing designed for use with female sockets manufactured by TE Connectivity AMP Connectors.

  • Package: Bulk
  • Positions: 4
  • Connector Type: Receptacle Housing
  • Contact Type: Crimp
  • Fastening Type: Threaded
  • Contact Size: 16
  • Ingress Protection: -
  • Shielding: Unshielded
  • Material Flammability Rating: UL94 V-0
  • Orientation: A
  • Housing Color: Black
  • Standard Package: 1
  • Mounting: Panel Mount
  • Mounting Feature: Flange
  • Shell Size - Insert: 11-4
  • Contact Shape: Circular
  • Operating Temperature: -55°C to 105°C
  • Shell Material: Polyamide (PA), Nylon
  • Insert Material: Thermoplastic
  • ECCN: EAR99
  • RoHS Compliant: Yes
  • HTSUS: 8538.90.6000
