Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr 3M
Series 3000
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 30
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Short
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.112" (2.84mm)
Insulation Height 0.340" (8.64mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features Keying Slot, Mounting Flange
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1.75A
Contact Finish Thickness - Post 200.0µin (5.08µm)
Base Product Number N3440
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names N3440-5502RB-ND,51111627693,51119920345,00051119920345,80001211988,5111992034,5111162769,N3440-5502RB,05111162769,05111992034,7010303840,XP700003773,00051111627693,80400031771,N34405202RB,MHR30S
Standard Package 250
Win Source Part Number 1041054-N3440-5202RB
Ultra Librarian 3D Model Ultra Librarian N3440-5202RB CAD Model

Description

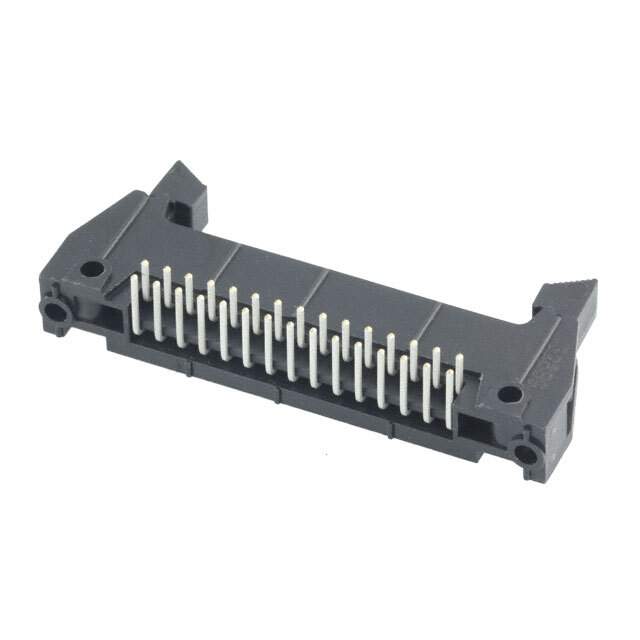

The 3M 1041054-N3440-5202RB is a male pin header connector with 30 positions and a keying slot.

  • Application: Board-to-Cable/Wire
  • Pitch: 0.100" (2.54mm)
  • Features: Mounting Flange, Latch Lock/Eject Hooks, Shrouded with 4 Walls
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
  • ECCN: EAR99
  • Current Rating: 1.75A
