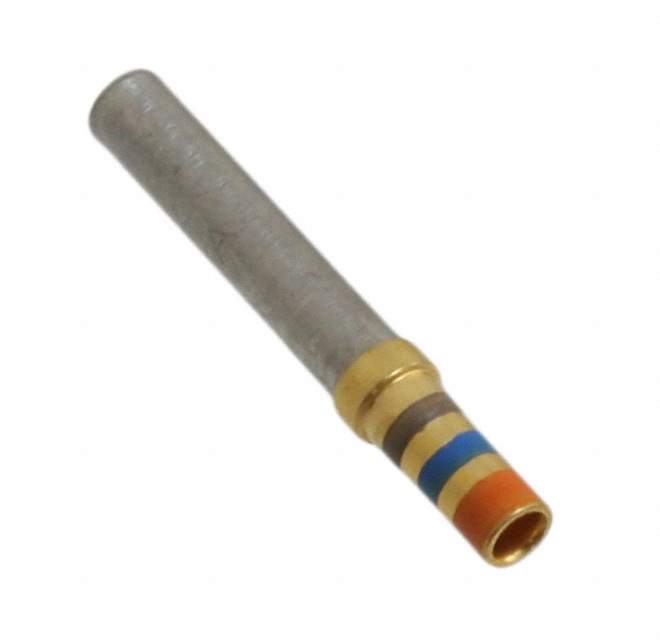

205090-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Contacts - Multi Purpose
Mfr TE Connectivity Aerospace, Defense and Marine
Series AMPLIMITE 109
Package Bulk
Type Machined
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 20-24 AWG
Contact Material Copper Alloy
Contact Finish Gold
Base Product Number 205090
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.90.4000
Other Names 2050901,A2161,2266-205090-1,-4-16211-7507-SI,-4-16211-7507-SI-ND,-205090-1-SI
Standard Package 1,000
Win Source Part Number 1013573-205090-1
Ultra Librarian 3D Model Ultra Librarian 205090-1 CAD Model

Description

The 205090-1 is a machined type multi-purpose contact from TE Connectivity Aerospace, Defense and Marine, part of the AMPLIMITE 109 series.

  • Contact Finish: gold
  • Contact Finish Thickness: not specified
  • Wire Gauge: 20-24 AWG
  • Termination: crimped
  • Contact Material: copper alloy
  • Pin or Socket: socket
  • Package Type: bulk
  • Standard Package: 1,000
  • ECCN: EAR99
  • REACH Status: affected
  • Popularity: 83 pct
  • HTSUS: 8536.90.4000
  • Other Names: A2161, 2266-205090-1, -4-16211-7507-SI, -4-16211-7507-SI-ND, 205090-1-SI
