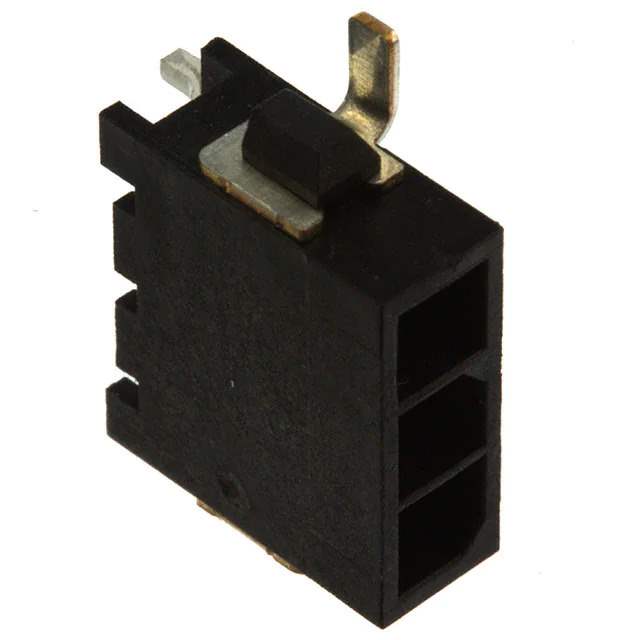

Part No 2029030-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 3POS 3MM / Connector Header Surface Mount, Right Angle 3 position 0.118" (3.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series Micro MATE-N-LOK
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.152" (3.85mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250V
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose
Base Product Number 2029030
Standard Package 215 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 854504-2029030-3
Ultra Librarian 3D Model Ultra Librarian 2029030-3 CAD Model

Description

The Micro MATE-N-LOK series header connector is a reliable component for your electronic projects.

  • Number of Positions: 3
  • Termination: Solder
  • Contact Type: Male Pin
  • Features: Locking Ramp
  • Mounting Type: Surface Mount, Right-Angle
  • Voltage Rating: 250V
  • Insulation Material: Polyamide (PA) and Nylon
  • Pitch: 0.118" (3.00mm)
  • Contact Finish: Tin
  • Application: General Purpose
  • Standard Package: 215 pcs
