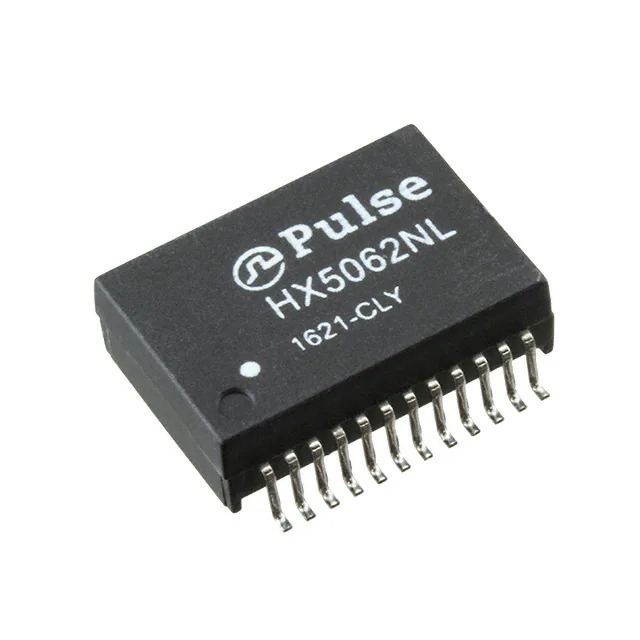

HX5062NL Pulse
Same model may have multiple batches, images only for reference.

HX5062NL

Part No HX5062NL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1 CT:1CT TX/RX 350UH / 350µH LAN 10/100/1000 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet
HX5062NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse Electronics
Series -
Package Tube
Product Status Active
Transformer Type LAN 10/100/1000 Base-T
Inductance 350µH
ET (Volt-Time) -
Mounting Type Surface Mount
Size / Dimension 0.689" L x 0.480" W (17.50mm x 12.20mm)
Height - Seated (Max) 0.225" (5.72mm)
Temperature Range - Operating -40°C ~ 85°C
Weight -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1356208-HX5062NL
Ultra Librarian 3D Model Ultra Librarian HX5062NL CAD Model

Description

The Pulse Electronics 1356208-HX5062NL is a pulse transformer designed for use in various applications.

  • Temperature Range: -40°C to 85°C
  • Mounting Type: Surface Mount
  • Size: 0.689" L x 0.480" W (17.50mm x 12.20mm)
  • Height: 0.225" (5.72mm) (Seated)
  • Status: Active
  • Application: LAN 10/100/1000 Base-T applications
