Products specifications

Win Source Part Number WS1207698-2-746610-3
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects-Rectangular Connectors-Arrays, Edge Type, Mezzanine (Board to Board)
Series AMP-Latch
Package Bulk
Product Status Active
Connector Type Ribbon Cable, DIP Header
Number of Positions 24
Cable Pitch 0.050" (1.27mm)
Board-Side Pitch 0.100" (2.54mm)
Row Spacing 0.100" (2.54mm)
Ultra Librarian 3D Model Ultra Librarian 2-746610-3 CAD Model

Description

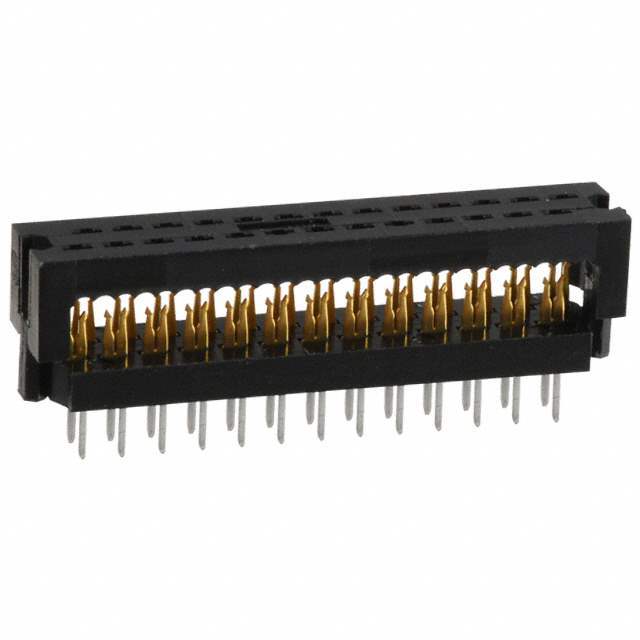

24 Position Ribbon Cable, DIP Header Connector Black IDC 26-28 AWG, Stranded; 26-30 AWG Solid Through Hole
