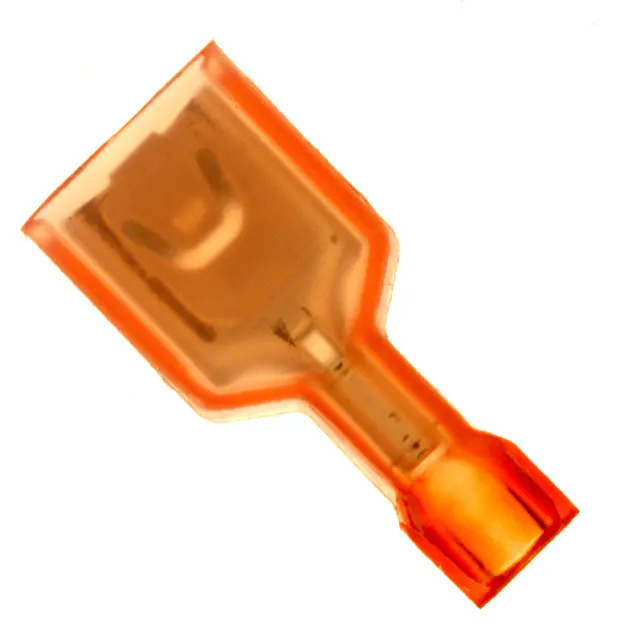

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Ultra-Fast Plus
Package Bulk
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length -
Length - Overall 0.855" (21.72mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Fully Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color Red
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.060" ~ 0.135" (1.52mm ~ 3.43mm)
Base Product Number 520407
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1365088-2-520407-2
Ultra Librarian 3D Model Ultra Librarian 2-520407-2 CAD Model

Description

The TE Connectivity AMP Connectors 520407-2 is a female quick disconnect connector from the Ultra-Fast Plus series.

  • Wire Gauge: 18-22 AWG
  • Contact Finish: Tin
  • Insulated: Fully Insulated
  • Overall Length: 0.855" (21.72mm)
  • Color: Red
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Insulation Diameter: 0.060" to 0.135" (1.52mm to 3.43mm)
  • Mounting Type: Free Hanging (In-Line)
  • Current Rating: 57 pct
  • RoHS Compliant: Yes
