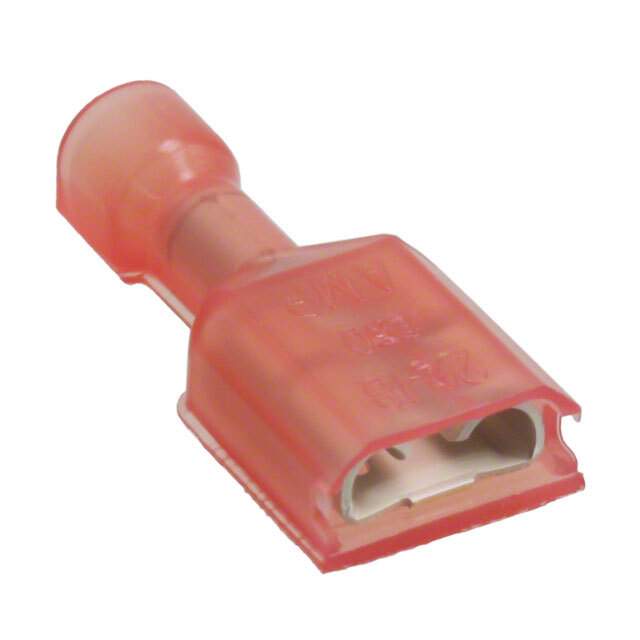

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Length - Overall 0.855" (21.72mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Fully Insulated
Mounting Free Hanging (In-Line)
Color Red
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.135" (3.43mm)
Base Product Number 520184
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 2-520184-2-ND,-2-520184-2-CSI,-403233752-SI,-403233752-CSI-ND,25201842,-403233752-CSI,-2-520184-2-SI,-403233752-SI-ND,A27817,-403233752-LSI
Standard Package 1,000
Win Source Part Number 1333466-2-520184-2
Ultra Librarian 3D Model Ultra Librarian 2-520184-2 CAD Model

Description

This electronic component is a female quick connect, quick disconnect connector manufactured by TE Connectivity AMP Connectors.

  • Packaging: bulk
  • Standard Package: 1,000
  • Color: red
  • Termination: crimp
  • Contact Finish: tin
  • Wire Gauge: 18-22 AWG
  • Contact Material: brass
  • Insulation: fully insulated
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Insulation Diameter: 0.135" (3.43mm)
  • Overall Length: 0.855" (21.72mm)
  • Mounting: free hanging (in-line)
  • Terminal Type: standard
  • MSL Level: 1 (unlimited)
  • HTSUS: 8536.90.4000
  • RoHS Compliant: yes
