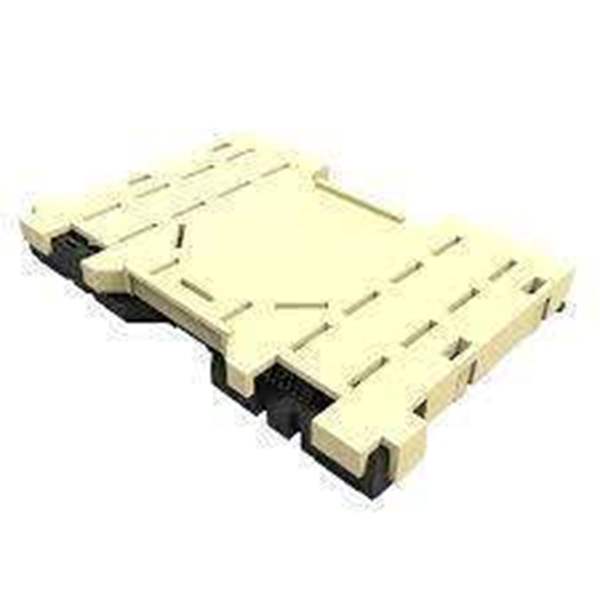

2-2129710-5TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

2-2129710-5

Part No 2-2129710-5
Manufacturer TE Connectivity
Catalog Sockets for ICs, Transistors - Adapters
Description CONN SOCKET LGA 3647POS GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1207622-2-2129710-5
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects- Sockets for ICs, Transistors IC Sockets
Package Tray
Product Status Active
Type LGA
Number of Positions or Pins (Grid) 3647
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Material - Mating Copper Alloy
Mounting Type Surface Mount
Ultra Librarian 3D Model Ultra Librarian 2-2129710-5 CAD Model

Description

3647 Pos LGA Socket Gold Surface Mount
