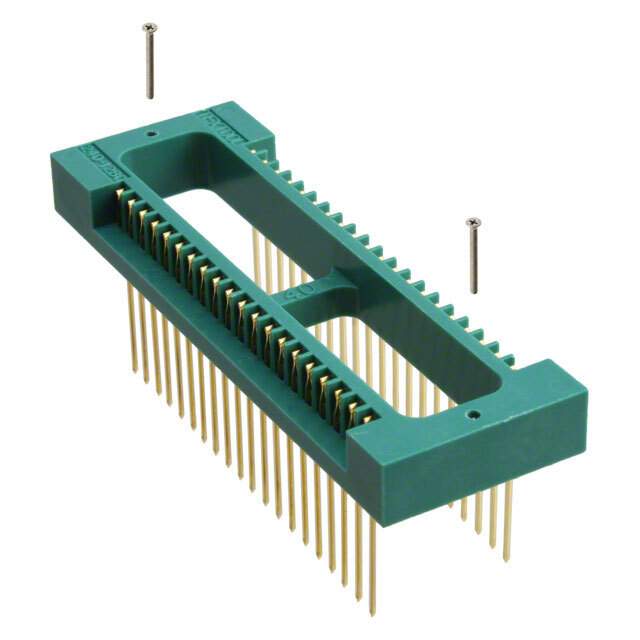

240-1280-39-0602J Real Image
Same model may have multiple batches, images only for reference.

240-1280-39-0602J

Part No 240-1280-39-0602J
Manufacturer 3M
Catalog Sockets for ICs, Transistors
Description RECEPTACLE DIP SOCKET 40POS .6" / IC Socket Adapter DIP, 0.6" (15.24mm) Row Spacing To DIP, 0.6" (15.24mm) Row Spacing Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Sockets for ICs, Transistors - Adapters
Mfr 3M
Series Textool™
Package Box
Convert From (Adapter End) DIP, 0.6" (15.24mm) Row Spacing
Convert To (Adapter End) DIP, 0.6" (15.24mm) Row Spacing
Number of Pins 40
Pitch - Mating 0.100" (2.54mm)
Contact Finish - Mating Gold
Mounting Type Through Hole
Termination Wire Wrap
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Gold
Housing Material Polysulfone (PSU), Glass Filled
Termination Post Length 0.620" (15.75mm)
Material Flammability Rating UL94 V-0
Features Closed Frame
Current Rating (Amps) 1 A
Temperature Range - Operating -55°C ~ 125°C
Contact Material - Mating Beryllium Copper
Contact Material - Post Beryllium Copper
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish Thickness - Post 30.0µin (0.76µm)
Base Product Number 240
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 0 51111 73440 7,2401280390602J,3M5036,5111173440,51111734407,7100172094,JE150084216
Standard Package 100
Win Source Part Number 1005537-240-1280-39-0602J
Ultra Librarian 3D Model Ultra Librarian 240-1280-39-0602J CAD Model

Description

The 3M 1005537-240-1280-39-0602J is a 40-pin, closed-frame socket adapter with wire wrap termination.

  • Series: Textool™
  • Number of Pins: 40
  • Termination: Wire Wrap
  • Package: Box
  • Pieces per Package: 100
  • Housing Material: Polysulfone (PSU), Glass-Filled
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Current Rating: 1 A
  • Operating Temperature: -55°C to 125°C
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
