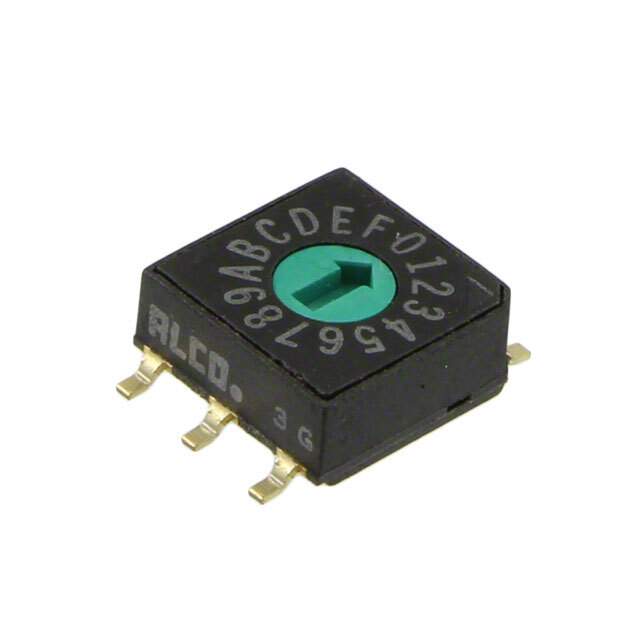

2-1825013-0 Real Image
Same model may have multiple batches, images only for reference.

2-1825013-0

Part No 2-1825013-0
Manufacturer TE Connectivity
Catalog DIP Switches
Description SWITCH ROTARY DIP HEX 0.40VA 20V
Datasheet
2-1825013-0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer TE Connectivity ALCOSWITCH Switches
Packaging Reel - TR
Status Active
Circuit Hexadecimal
Number of Positions 16
Current Rating 0.4VA
Voltage Rating 20VAC/DC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.122" (3.10mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Features Process Sealed
Body Material Polyphenylene Sulfide (PPS)
Length 0.276" (7.00mm)
Temperature Range - Operating -30°C to 85°C
Mechanical Life 20,000 Steps
Electrical Life 10,000 Steps
Win Source Part Number 1079626-2-1825013-0
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2-1825013-0 CAD Model

Description

The TE Connectivity ALCOSWITCH Switches 1079626-2-1825013-0 is a rotary hexadecimal switch that comes with 16 positions and a pitch of 0.100" (2.54mm), full.

  • Positions: 16
  • Pitch: 0.100" (2.54mm), Full
  • Seal: Process-Sealed
  • Termination Style: Gull-Wing
  • Contact Finish: Gold
  • Voltage Rating: 20VAC/DC
  • Current Rating: 0.4VA
  • Height Above Board: 0.122" (3.10mm)
  • Length: 0.276" (7.00mm)
  • Mounting Style: SMD (SMT)
  • Body Material: Polyphenylene Sulfide (PPS)
  • Actuator Type: Flush/Recessed
  • Washable: Yes
  • Electrical Life: 10,000 Steps
  • Mechanical Life: 20,000 Steps
  • Operating Temperature Range: -30°C to 85°C
