Same model may have multiple batches, images only for reference.

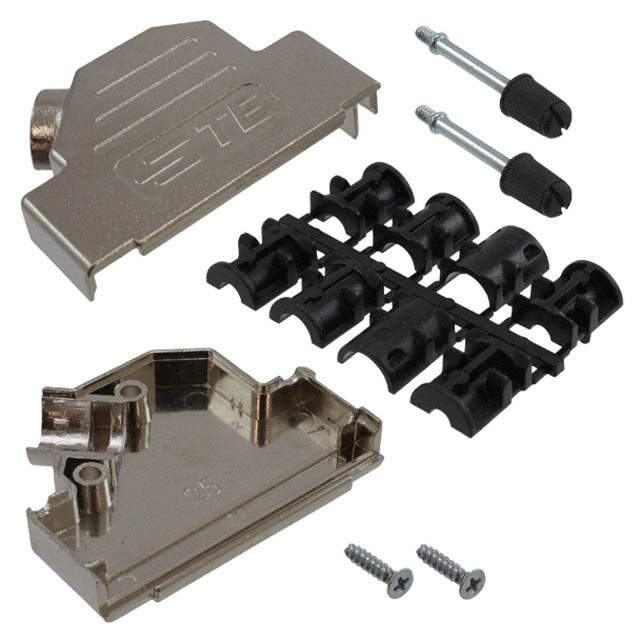

1-2198618-5 Real Image
Same model may have multiple batches, images only for reference.

1-2198618-5

Part No 1-2198618-5
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN BACKSHELL 15POS 45DEG SHLD  /  15 Position Two Piece Backshell Connector Silver 45° Shielded
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors - Backshells, Hoods
Mfr TE Connectivity AMP Connectors
Series ADK
Package Bulk
Accessory Type Two Piece Backshell
Number of Positions 15
Cable Type Round
Cable Exit 45°
Shielding Shielded
Material Acrylonitrile Butadiene Styrene (ABS)
Plating Nickel
Hardware Assembly Hardware, Grommets, Strain Relief
Features Mating Screws 4-40
Color Silver
Base Product Number 2198618
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.8180
Other Names A106193,121986185
Standard Package 100
Win Source Part Number 1034581-1-2198618-5
Ultra Librarian 3D Model Ultra Librarian 1-2198618-5 CAD Model

Description

This electronic component is a shielded two-piece backshell for D-Sub, D-Shaped Connectors.

  • Win Source Part Number: 1034581-1-2198618-5
  • Series: ADK
  • Number of Positions: 15
  • Color: Silver
  • Package: Bulk
  • Cable Type: Round
  • Accessory Type: Two-Piece Backshell
  • Standard Package Quantity: 100
  • Material: Acrylonitrile Butadiene Styrene (ABS)
  • Plating: Nickel
  • Cable Exit: 45°
  • Hardware: Assembly hardware, Grommets, and Strain Relief
  • Alternative Parts (Cross-Reference): 5748678-2, 737431-2, 1-2198617-5, 737431-1
  • MSL Level: 1 (Unlimited)
  • REACH Status: Vendor Undefined
  • Current Rating: Not Specified
