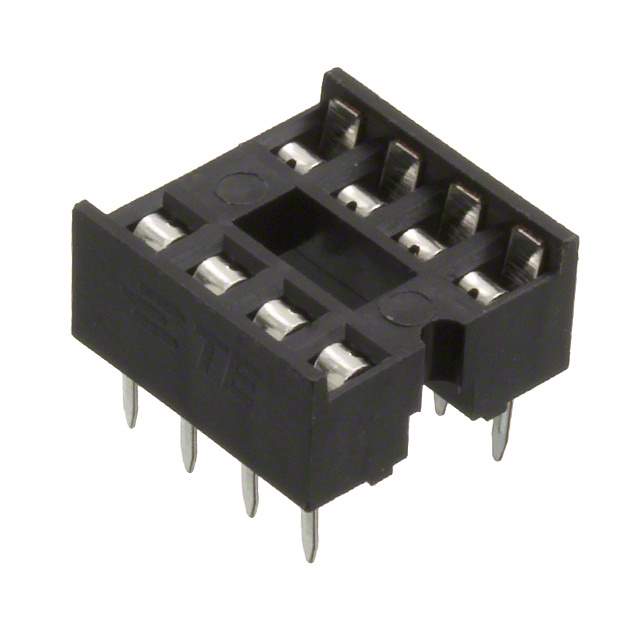

1-2199298-2 Real Image
Same model may have multiple batches, images only for reference.

1-2199298-2

Part No 1-2199298-2
Manufacturer TE Connectivity
Catalog Unclassified
Description CONN IC DIP SOCKET 8POS TIN / 8 (2 x 4) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Tin Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Sockets for ICs, Transistors>IC Sockets
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Type DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) 8 (2 x 4)
Pitch - Mating 0.100" (2.54mm)
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60.0µin (1.52µm)
Contact Material - Mating Phosphor Bronze
Mounting Through Hole
Features Open Frame
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Tin
Contact Material - Post Brass, Copper
Housing Material Polybutylene Terephthalate (PBT), Thermoplastic, Glass Filled
Temperature Range - Operating -40°C ~ 105°C
Termination Post Length 0.118" (3.00mm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1 A
Contact Resistance 20mOhm
Base Product Number 2199298
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A120347,-1-2199298-2-SI
Standard Package 60
Win Source Part Number 1334070-1-2199298-2
Ultra Librarian 3D Model Ultra Librarian 1-2199298-2 CAD Model

Description

The TE Connectivity AMP Connectors electronic component with Win Source Part Number 1334070-1-2199298-2 is a DIP socket for ICs and transistors that has an 8-pin grid with a 0.100" (2.54mm) pitch.

  • Frame: Open
  • Material: Polybutylene terephthalate (PBT), a thermoplastic material that is glass-filled
  • Material Flammability Rating: UL94 V-0
  • Package: 60
  • Mounting: Through hole
  • Contact Finish for Mating: Tin
  • Contact Material for Mating: Phosphor bronze
  • Termination Post Length: 0.118" (3.00mm)
  • Contact Resistance: 20mOhm
