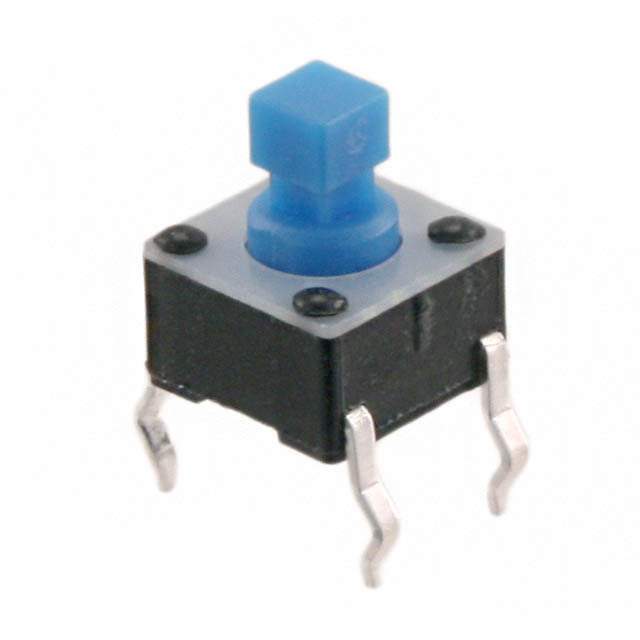

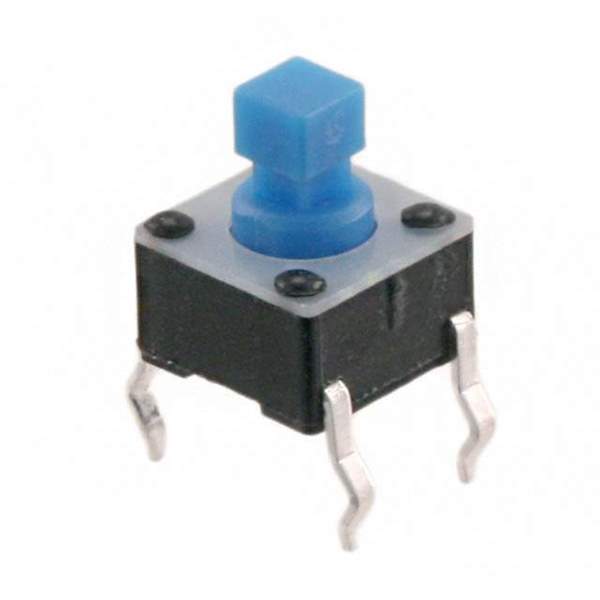

1825967-1 Real Image
Same model may have multiple batches, images only for reference.

1825967-1

Part No 1825967-1
Manufacturer TE Connectivity
Catalog Pushbutton Switches
Description SWITCH TACTILE SPST-NO 0.05A 24V / Tactile Switch SPST-NO Top Actuated Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series FSMCD
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Plunger for Cap
Mounting Type Through Hole
Actuator Height off PCB, Vertical 7.50mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Operating Force 100gf
Temperature Range - Operating -35°C ~ 85°C
Actuator Material Polyamide (PA66), Nylon 6/6
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Base Product Number 1825967
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names 450-1654,FSMCDH,2266-1825967-1
Standard Package 750
Win Source Part Number 959738-1825967-1
Ultra Librarian 3D Model Ultra Librarian 1825967-1 CAD Model

Description

The TE Connectivity ALCOSWITCH Switches FSMCD series tactile switch has a plunger for cap actuator type and an off-mom switch function.

  • Switch Function: SPST-NO
  • Switch Travel: 0.25mm
  • Operating Force: 100gf
  • Mechanical Life: 100,000 cycles
  • Mounting Type: Through-hole
  • Operating Temperature: -35°C to 85°C
  • Illumination: Not illuminated
  • Actuator Height off PCB, Vertical: 7.50mm
  • ROHS3 Compliant: Yes
  • HTSUS Code: 8536.50.9031
