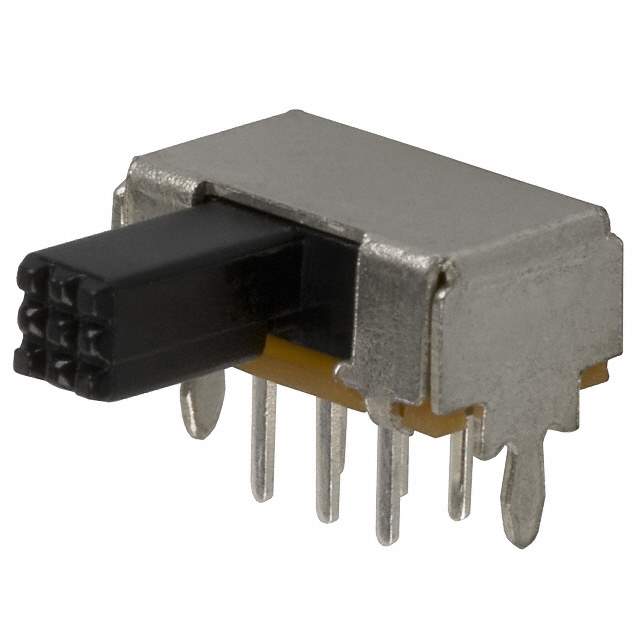

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr E-Switch
Series EG
Package Bulk
Circuit DPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 200mA (DC)
Voltage Rating - DC 30 V
Actuator Type Standard
Actuator Length 6.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Temperature Range - Operating -20°C ~ 70°C
Switch Travel 2.00mm
Operating Force 200gf
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Names EG1942,P040111
Standard Package 800
Win Source Part Number 1032203-EG2208A
Ultra Librarian 3D Model Ultra Librarian EG2208A CAD Model

Description

The 1032203-EG2208A is a DPDT slide switch manufactured by E-Switch.

  • Temperature Range: -20°C to 70°C
  • Voltage Rating (DC): 30V
  • Current Rating (DC): 200mA (DC)
  • Switch Function: On-On
  • Actuator Type: Standard
  • Actuator Length: 6.00mm
  • Switch Travel: 2.00mm
  • Contact Finish: Silver
  • Contact Material: Copper alloy
  • Package: Bulk
  • Category: Slide switches
  • MSL Level: 1 (unlimited)
  • REACH Status: REACH unaffected
  • ECCN: EAR99
  • HTSUS: 8536.50.9050
  • Alternative parts (cross-reference): EG2201A, EG2211, EG2207, MSS225R, GPI-154-3013, and GPI-152-3013
