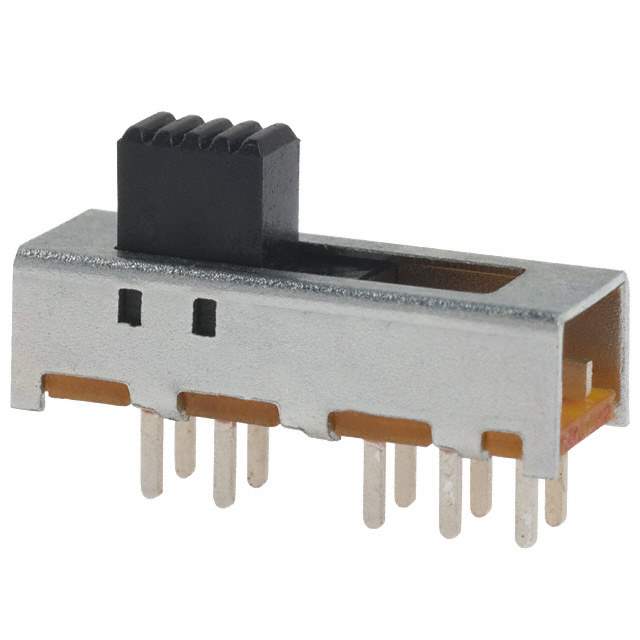

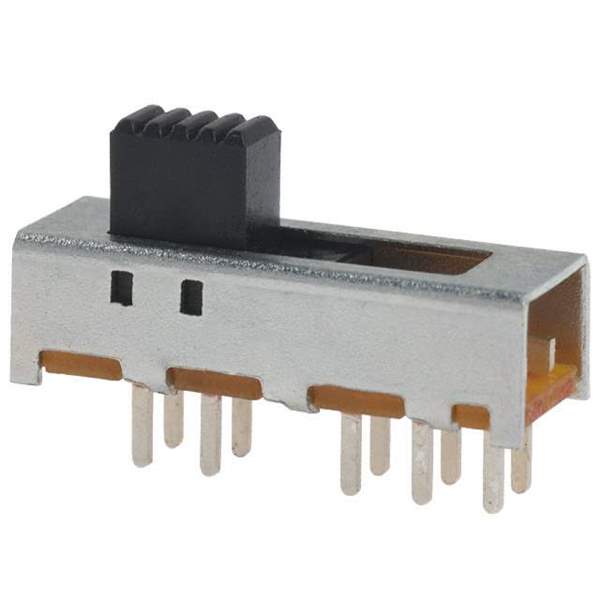

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series STS
Package Bulk
Product Status Obsolete
Circuit DP4T
Contact Timing Shorting (MBB)
Switch Function On-On-On-On
Current Rating (Amps) 300mA (AC)
Voltage Rating - AC 125 V
Actuator Type Standard
Actuator Length 4.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Features Epoxy Sealed Terminals
Temperature Range - Operating -10°C ~ 60°C
Actuator Material Polyoxymethylene (Acetal) (POM)
Switch Travel 2.50mm
Mechanical Life 10,000 Cycles
Operating Force 250gf
Base Product Number 1825165
Standard Package 100
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1338471-1825165-1
Ultra Librarian 3D Model Ultra Librarian 1825165-1 CAD Model

Description

The STS series DP4T slide switch is a high-quality switch designed for various applications.

  • Series: STS
  • Switch Type: Slide
  • Configuration: DP4T
  • Termination Style: Epoxy Sealed Terminals
  • Voltage Rating: 125V AC
  • Current Rating: 300mA (AC)
  • Contact Timing: Shorting (MBB)
  • Switch Function: On-On-On-On
  • Actuator Material: Polyoxymethylene (Acetal) (POM)
  • Actuator Length: 4.00mm
  • Switch Travel: 2.50mm
  • Operating Force: 250gf
  • Mechanical Life: 10,000 Cycles
  • Operating Temperature: -10°C to 60°C
  • Mounting Type: Through Hole
