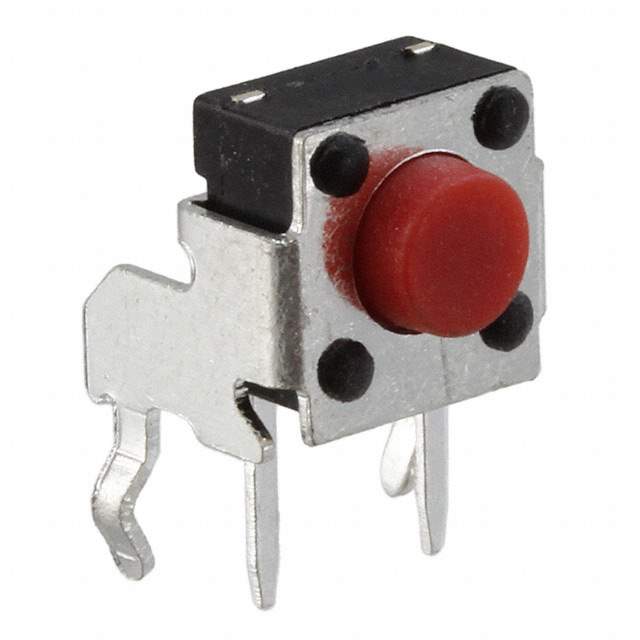

Same model may have multiple batches, images only for reference.

1825027-6

Name: 1825027-6
Brand: TE Connectivity
SKU: 1323810
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1825027-6
Manufacturer	TE Connectivity
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V / Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>Tactile Switches
Manufacturer	TE Connectivity ALCOSWITCH Switches
Packaging	Bulk
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 24VDC
Actuator Type	Standard
Mounting	Through Hole, Right Angle
Actuator Length, Right Angle	3.86mm
Actuator Orientation	Side Actuated
Termination Style	PC Pin
Outline	7.11mm x 6.60mm
Illumination	Non-Illuminated
Operating Force	260gf
Temperature Range - Operating	-35°C ~ 85°C
Actuator Material	Polybutylene Terephthalate (PBT)
Switch Travel	0.25mm
Mechanical Life	100,000 Cycles
Base Product Number	1825027
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9031
Other Part Number	FSMRA2JHA,-FSMRA2JHA-SI,-FSMRA2JHA-SI-ND,-1825027-6-CSI,-FSMRA2JHA-CSI,-FSMRA2JHA-CSI-ND,A109320,-1825027-6-SI,-FSMRA2JHA-LSI
Standard Package	1,000
Win Source Part Number	1323810-1825027-6
Ultra Librarian 3D Model	Ultra Librarian 1825027-6 CAD Model

Description

The TE Connectivity ALCOSWITCH Switches 1825027 is a tactile switch with a circuit of SPST-NO and a switch function of Off-Mom.

Mounting Type: Through Hole, Right Angle
Switch Travel: 0.25mm
Operating Force: 260gf
Actuator Material: Polybutylene Terephthalate (PBT)
Actuator Length: 3.86mm
