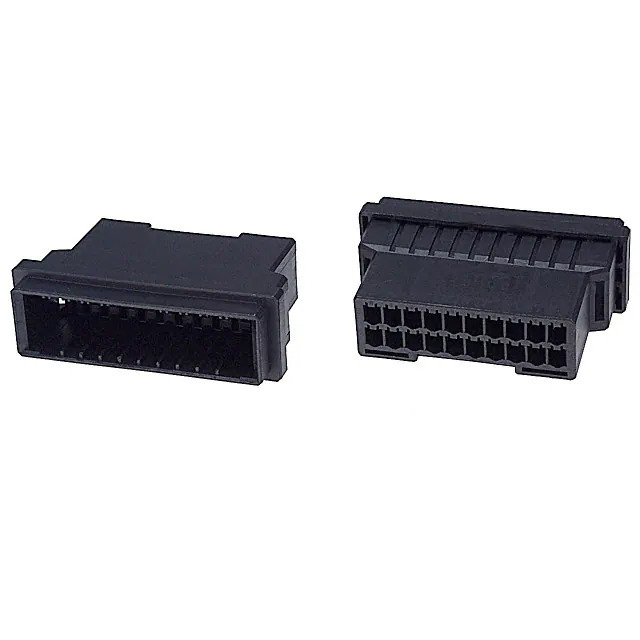

178964-8 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series Dynamic D-3100
Package Bulk
Product Status Active
Connector Type Plug
Contact Type Tab
Number of Positions 20
Pitch 0.150" (3.81mm)
Number of Rows 2
Row Spacing 0.200" (5.08mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type -
Color Black
Features -
Temperature Range - Operating -55°C ~ 105°C
Note Contacts Not Included
Base Product Number 178964
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1365941-178964-8
Ultra Librarian 3D Model Ultra Librarian 178964-8 CAD Model

Description

The Dynamic D-3100 is a rectangular connector housing from TE Connectivity AMP Connectors designed for use in connectors, interconnects, and rectangular connector housings.

  • Temperature Range: -55°C to 105°C
  • Color: Black
  • Connector Type: Plug
  • Contact Type: Tab
  • Number of Positions: 20
  • Number of Rows: 2
  • Pitch: 0.150" (3.81mm)
  • Row Spacing: 0.200" (5.08mm)
  • Termination: Crimp
  • Product Status: Active
  • Mounting Type: Free Hanging (In-Line)
