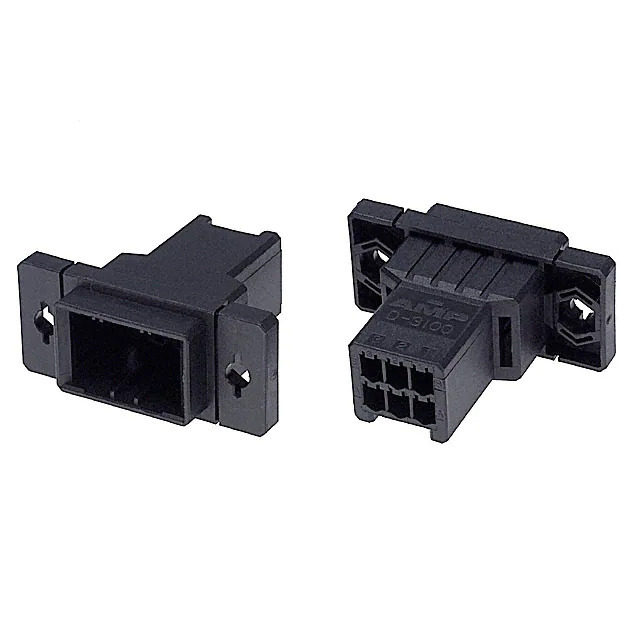

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series Dynamic D-3100
Package Bulk
Product Status Active
Connector Type Plug
Contact Type Tab
Number of Positions 6
Pitch 0.150" (3.81mm)
Number of Rows 2
Row Spacing 0.200" (5.08mm)
Mounting Type Panel Mount
Contact Termination Crimp
Fastening Type Push-Pull
Color Black
Features Mounting Flange
Temperature Range - Operating -55°C ~ 105°C
Note Contacts Not Included
Base Product Number 178803
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1365765-178803-3
Ultra Librarian 3D Model Ultra Librarian 178803-3 CAD Model

Description

The TE Connectivity AMP Connectors Dynamic D-3100 series offers a reliable solution for rectangular connector housings.

  • Temperature Range: -55°C to 105°C
  • Mounting Feature: Mounting flange
  • Mounting Type: Panel mount
  • Connector Type: Plug
  • Number of Positions: 6
  • Number of Rows: 2
  • Fastening Type: Push-pull
  • Contacts Included: No
  • Pitch: 0.150" (3.81mm)
  • Row Spacing: 0.200" (5.08mm)
  • Product Status: Active
  • Packaging: Bulk
  • REACH: Unaffected
  • ECCN: EAR99
