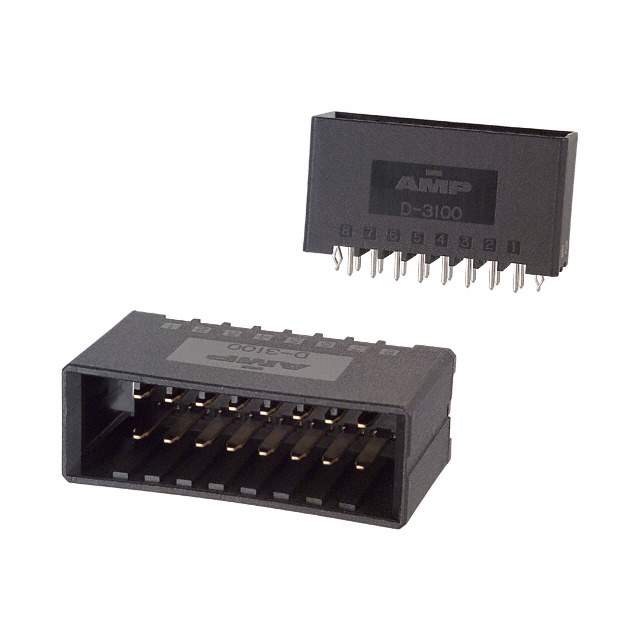

178327-2 Real Image
Same model may have multiple batches, images only for reference.

178327-2

Part No 178327-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 16POS 3.81MM / Connector Header Through Hole 16 position 0.150" (3.81mm)
Datasheet
178327-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Dynamic D-3100
Package Bulk
Connector Type Header
Contact Type Tab
Pitch - Mating 0.150" (3.81mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.200" (5.08mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Post 0.150" (3.81mm)
Insulation Height 0.850" (21.59mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 250V
Applications General Purpose, Industrial
Base Product Number 178327
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names A29521-NDR,-178327-2-SI,A29521,2266-178327-2,-178327-2-CSI
Standard Package 960
Win Source Part Number 1007150-178327-2
Ultra Librarian 3D Model Ultra Librarian 178327-2 CAD Model

Description

The Dynamic D-3100 series by TE Connectivity is a header connector with a board lock feature.

  • Connector Type: Header
  • Contact Type: Tab
  • Positions: 16
  • Positions Loaded: All
  • Mounting Type: Through-Hole
  • Shrouding: Shrouded - 4 Wall
  • Pitch: 0.150" (3.81mm)
  • Voltage Rating: 250V
  • Temperature Range: -55°C to 105°C
  • Standard Package: 960
