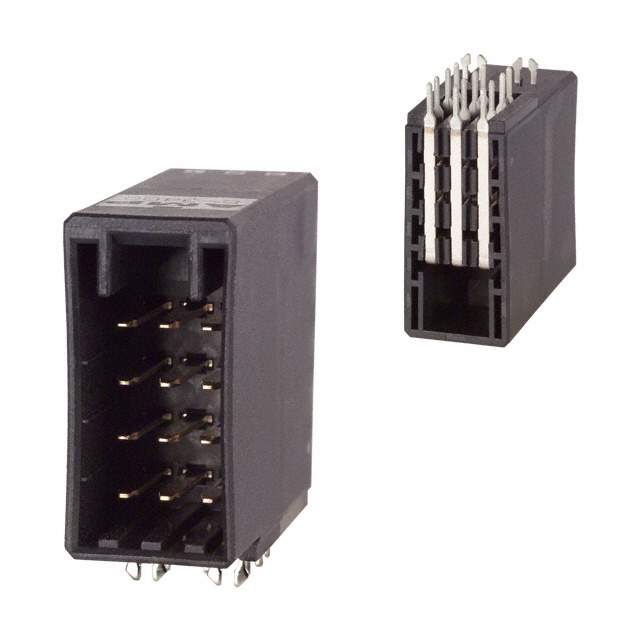

178216-2 Real Image
Same model may have multiple batches, images only for reference.

178216-2

Part No 178216-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADR 12POS 4ROW R/A 15GOLD
Datasheet
178216-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series Dynamic D-3400
Packaging Bulk
Connector Type Header
Contact Type Tab
Pitch - Mating 0.150" (3.81mm)
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Number of Positions 12
Number of Positions Loaded All
Number of Rows 4
Row Spacing - Mating 0.200" (5.08mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Post 0.150" (3.81mm)
Insulation Height 1.244" (31.60mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15μin (0.38μm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Operating Temperature Range -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 250V
Applications General Purpose, Industrial
Win Source Part Number 760633-178216-2
Popularity Medium
Supply and Demand Status Limited
Family Name 178216
Introduction Date July 01, 2004
ECCN EAR99
Country of Origin Japan
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 178216-2 CAD Model

Description

The TE Connectivity AMP Connectors Dynamic D-3400 series header connector is a versatile and reliable solution for your general purpose and industrial applications. With a 12-position tab contact type and a board lock feature, this connector is designed to provide a secure and stable connection.

  • Series: Dynamic D-3400
  • Positions: 12
  • Contact Type: Tab
  • Features: Board Lock
  • Contact Material: Copper Alloy
  • Contact Finish: Tin
  • Voltage Rating: Up to 250V
  • Material Flammability Rating: UL94 V-0
  • Mounting Style: Through-Hole, Right Angle
  • Insulation Material: Thermoplastic, Polyester, Glass-Filled
  • Shrouding: 4-Wall
  • Contact Length: 0.150 inches
  • Insulation Height: 1.244 inches
  • Pitch (Mating): 0.150 inches
  • Contact Finish (Mating): Gold (15µin)
