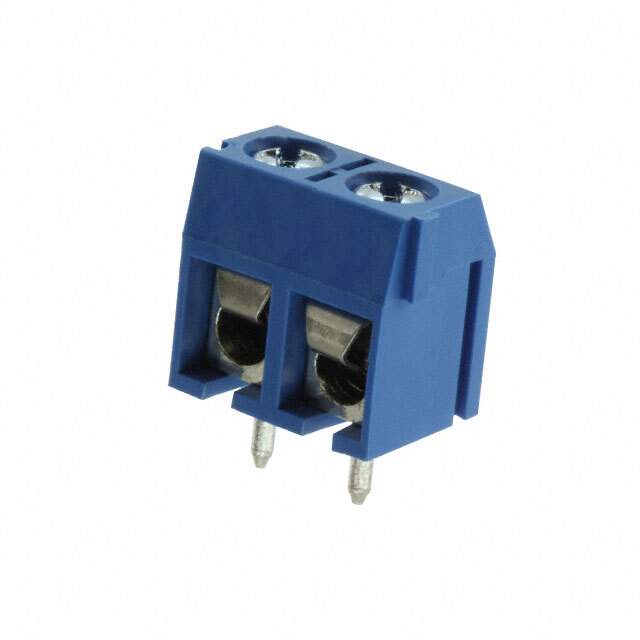

1776493-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks - Wire to Board
Mfr TE Connectivity AMP Connectors
Series Buchanan
Package Bulk
Number of Levels 1
Positions Per Level 2
Pitch 0.200" (5.08mm)
Mating Orientation Horizontal with Board
Current 10 A
Voltage 300 V
Wire Gauge 14-22 AWG
Mounting Type Through Hole
Wire Termination Screw - Leaf Spring, Wire Guard
Features Interlocking (Side)
Color Blue
Temperature Range - Operating -55°C ~ 105°C
Housing Material Polyamide (PA), Nylon
Contact Material - Plating Brass - Copper Tin Plated
Clamp Material - Plating Steel, Stainless
Screw Material - Plating Steel, Galvanized - Chromate Plated
Torque - Screw 0.4 Nm (3.5 Lb-In)
Screw Thread M2.6
Base Product Number 1776493
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-1776493-2,1776493-2-ND,A122765
Standard Package 800
Win Source Part Number 1199611-1776493-2
Ultra Librarian 3D Model Ultra Librarian 1776493-2 CAD Model

Description

The 1776493-2 is a blue, interlocking, 2-position per level, wire to board terminal block connector from the Buchanan series from TE Connectivity AMP Connectors.

  • Pitch: 0.200" (5.08mm)
  • Wire Gauge: 14-22 AWG
  • Housing Material: Polyamide (PA), Nylon
  • Contact Material: Brass with Copper Tin Plating
  • Clamp and Screw Material: Steel, Stainless with Galvanized-Chromate Plating
  • Maximum Voltage: 300 V
  • Current Rating: 10 A
  • Screw Thread: M2.6
  • Torque: 0.4 Nm (3.5 Lb-In)
  • Mounting: Through Hole
  • Temperature Range: -55°C ~ 105°C
  • Alternative Part Number: 2266-1776493-2
