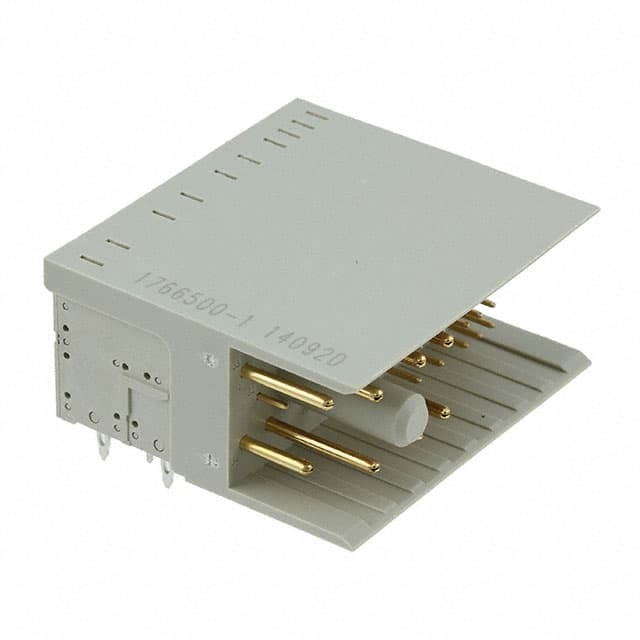

Part No 1766500-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN PLUG ATCA 34POS PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Specialized
Mfr TE Connectivity
Package Tube
Product Status Obsolete
Connector Usage Front Board
Connector Type Plug, Male Pins
Connector Style AdvancedTCA®
Number of Positions 34
Number of Positions Loaded 30
Mounting Type Through Hole, Right Angle
Termination Press-Fit
Contact Layout, Typical 26 Signal, 8 Power
Features Guide Pin
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Color Gray
Material Flammability Rating UL94 V-0
Base Product Number 1766500
Standard Package 11 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 854165-1766500-1
Ultra Librarian 3D Model Ultra Librarian 1766500-1 CAD Model

Description

The 854165-1766500-1 is a specialized backplane connector from TE Connectivity.

  • Connector Type: Plug
  • Pins: Male
  • Positions: 34
  • Application: AdvancedTCA Systems, Front Board
  • Features: Guide Pin
  • Termination: Press-Fit
  • Positions Loaded: 30
  • Contact Finish: Gold, 50.0μin (1.27μm)
  • Package: Tube
  • Material Flammability Rating: UL94 V-0
  • Product Status: Obsolete
  • Standard Package: 11 pieces
