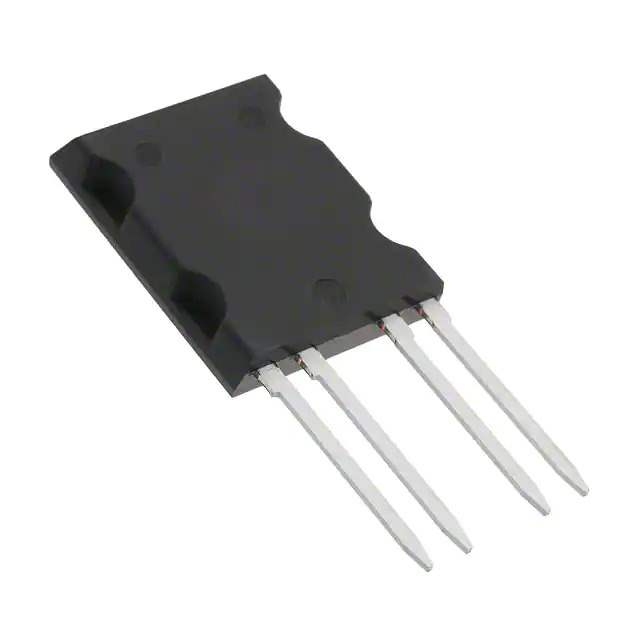

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr IXYS Integrated Circuits Division
Series CPC, OptoMOS®
Package Tube
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 100 V
Load Current 6.75 A
On-State Resistance (Max) 75 mOhms
Termination Style PC Pin
Package / Case ISOPLUS264™
Supplier Device Package ISOPLUS264™
Base Product Number CPC1718
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
California Prop 65 Warning Information
Win Source Part Number 1348835-CPC1718J
Ultra Librarian 3D Model Ultra Librarian CPC1718J CAD Model

Description

The CPC1718J is a solid-state relay from the CPC series of OptoMOS relays.

  • Series: CPC
  • Configuration: SPST-NO
  • On-State Resistance (Max): 75 mOhms
  • Load Current: 6.75 A
  • Voltage Input: 1.2VDC
  • Load Voltage Range: 0 V to 100 V
  • Package: ISOPLUS264™
  • Termination Style: PC Pin
