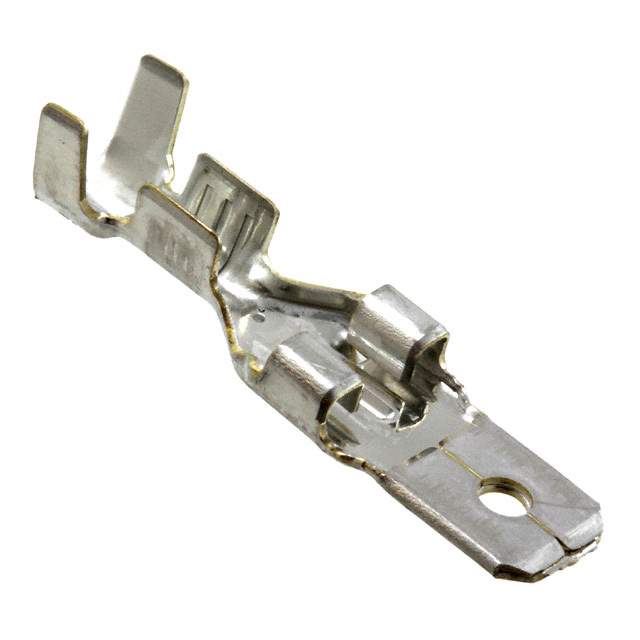

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Male
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Length - Overall 0.791" (20.10mm)
Termination Crimp
Wire Gauge 16-20 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.075" ~ 0.134" (1.91mm ~ 3.40mm)
Base Product Number 175179
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 1751791,175179-1-ND,A107109TR,A107109CT
Standard Package 6,000
Win Source Part Number 1333727-175179-1
Ultra Librarian 3D Model Ultra Librarian 175179-1 CAD Model

Description

The 175179-1 is a quick connect terminal manufactured by TE Connectivity AMP Connectors.

  • Terminal Gender: Male
  • Terminal Type: Standard
  • Termination Type: Crimp
  • Wire Gauge: 16-20 AWG
  • Insulation: Non-Insulated
  • Applications: Automotive, Industrial, and Consumer Electronics
