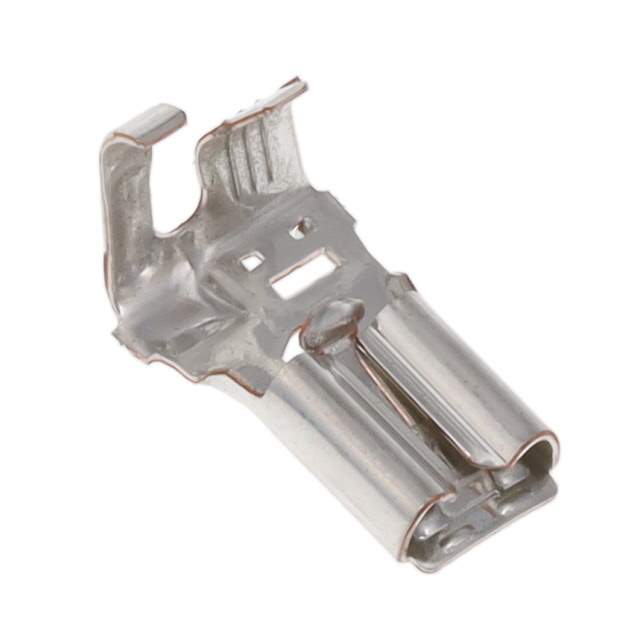

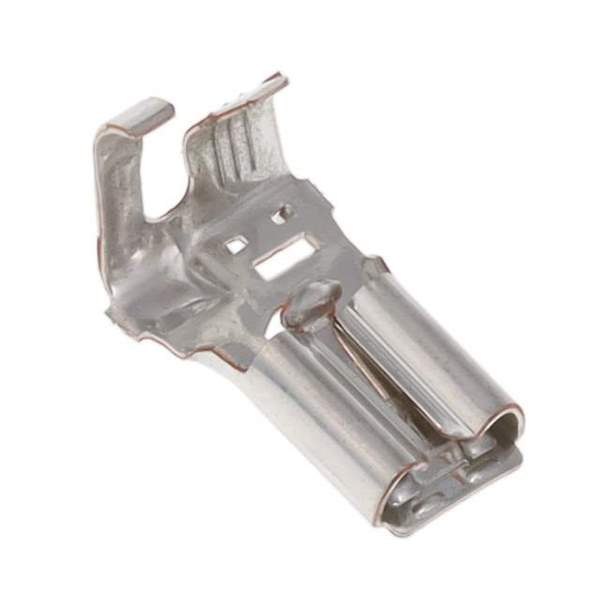

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.307" (7.80mm)
Termination Crimp
Wire Gauge 12-18 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line), Right Angle
Contact Material Copper Alloy
Contact Finish Tin
Insulation Diameter 0.110" ~ 0.161" (2.79mm ~ 4.09mm)
Base Product Number 175057
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A131046TR,A131046CT,A131046-ND,A131046DKRINACTIVE,A131046DKR-ND,175057-2-ND,A131046,A131046DKR
Standard Package 3,000
Win Source Part Number 1333720-175057-2
Ultra Librarian 3D Model Ultra Librarian 175057-2 CAD Model

Description

The 1333720-175057-2 quick connect terminal is designed by TE Connectivity AMP Connectors.

  • Packaging: reel
  • Standard Package: 3,000
  • Terminal Gender: Female
  • Terminal Type: angled-90° flag
  • Insulation: Non-Insulated
  • Insulation Diameter: 0.110" ~ 0.161" (2.79mm ~ 4.09mm)
  • Wire Gauge: 12-18 AWG
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Tab Length: 0.307" (7.80mm)
  • Contact Material: copper alloy
  • Contact Finish: tin
  • Termination Type: crimped
  • Mounting Type: free hanging (in-line), right angle
  • MSL Level: 1 (unlimited)
  • REACH status: vendor undefined
  • HTSUS code: 8536.90.4000
